Oil Pan - Vehicles Built Up To: 19-March-2018: Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan, may cause engine failure.

4x2/4x4

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting .
Disconnect the battery ground cable. Refer to: Battery Cables .
Remove the oil level indicator.

Courtesy of FORD MOTOR COMPANY
- Release the retainer and remove the transmission housing cover.
Courtesy of FORD MOTOR COMPANY
- Remove the bolts and the underbody shield.
Courtesy of FORD MOTOR COMPANY
If equipped.Remove the front driveshaft. Refer to: Front Driveshaft .
NOTE: The oil drain plug should be removed and installed by hand, do not use hand tools.

NOTE: Overtightening will damage the oil drain plug and possibly the oil pan.

Remove the oil pan plug and drain the engine oil. Use the General Equipment: Oil Drain Equipment.

Courtesy of FORD MOTOR COMPANY
Remove and discard the oil filter. Use the General Equipment: Oil Drain Equipment.

Courtesy of FORD MOTOR COMPANY
Remove the starter motor. Refer to: Starter Motor .
Remove the pin-type retainer and position aside the transmission cooler tube.

Courtesy of FORD MOTOR COMPANY
Remove the bolt and position aside the transmission cooler tube.

Courtesy of FORD MOTOR COMPANY
Detach the starter motor wiring harness retainer from the oil pan. Remove the bolt and the ground wire.

Courtesy of FORD MOTOR COMPANY
Remove the nut and position out the transmission cooler tube bracket. Position out the engine wiring harness.

Courtesy of FORD MOTOR COMPANY

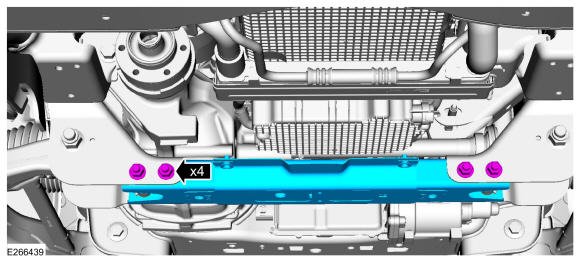

Remove the nuts, bolts and the crossmember.

Courtesy of FORD MOTOR COMPANY

4x4
Using a holding device, hold the steering wheel in the straight-ahead position.

Courtesy of FORD MOTOR COMPANY

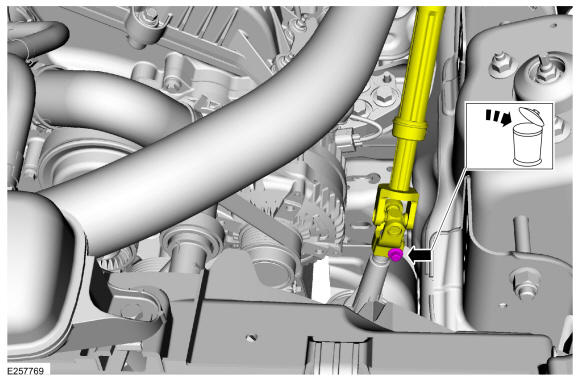

Remove and discard the bolt. Separate the steering column shaft.

Courtesy of FORD MOTOR COMPANY
Using an adjustable stand, support the front axle. Use the General Equipment: Vehicle/Axle Stands.

Courtesy of FORD MOTOR COMPANY
Remove the axle shaft housing carrier bushing bolt.

Courtesy of FORD MOTOR COMPANY
Remove the upper front axle carrier mounting bushing bolt.

Courtesy of FORD MOTOR COMPANY
Remove the lower front axle carrier mounting bushing bolt.

Courtesy of FORD MOTOR COMPANY
Using an adjustable stand, lower the axle to allow clearance for the oil pan to be removed. Use the General Equipment: Vehicle/Axle Stands.

Courtesy of FORD MOTOR COMPANY

4x2/4x4

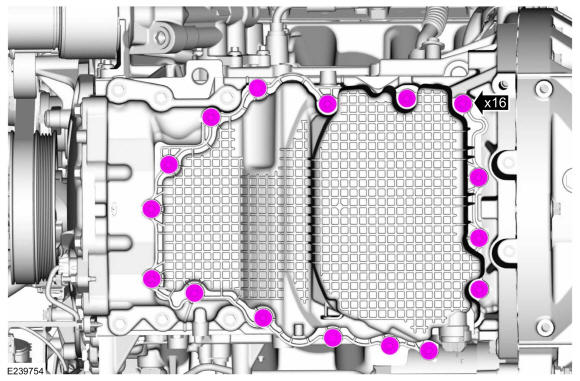

Remove the oil pan bolts.

Courtesy of FORD MOTOR COMPANY
NOTE: RH shown, LH similar.

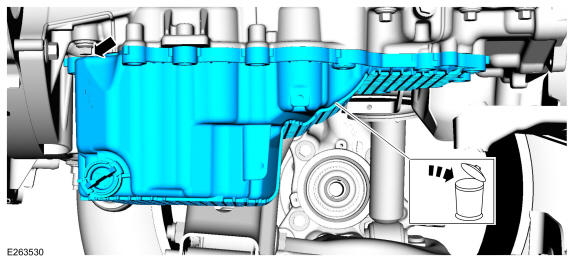

Using a pry tool on the pry pads, remove and discard the oil pan.

Courtesy of FORD MOTOR COMPANY
NOTE: Do not use wire brushes, power abrasive discs or 3M™ Roloc® Bristle Disk (2-in white, part number 07528) to clean the sealing surfaces of the engine block. These tools cause scratches and gouges that make leak paths. They also cause contamination that causes premature engine failure. Remove all traces of the gasket.

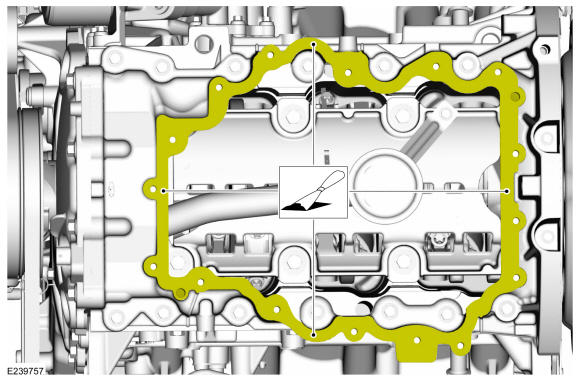

Make sure that the mating faces of the oil pan are clean and free of foreign material. Refer to: RTV Sealing Surface Cleaning and Preparation . Use the General Equipment: Plastic Scraper.

Material: Motorcraft® Silicone Gasket Remover / ZC-30-A

Material: Motorcraft® Metal Surface Prep Wipes / ZC-31-B

Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

Courtesy of FORD MOTOR COMPANY
