Intake Manifold: Removal
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the battery ground cable. Refer to: Battery Cables .
- Remove the engine appearance cover retainers, release the engine appearance cover from the rear retainers and then remove the engine appearance cover.
- Remove the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .

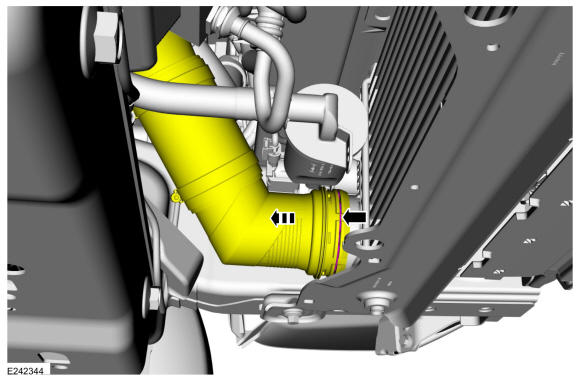

- Release the clip and disconnect the charge air cooler outlet pipe.
-
- Disconnect the quick release coupling. Refer to: Quick Release Coupling .

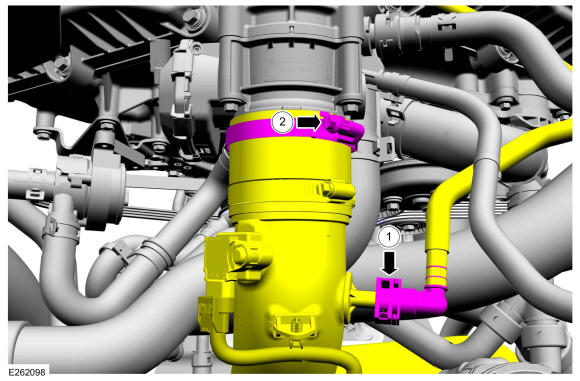

- Loosen the clamp and position the charge air cooler outlet pipe aside.
- Disconnect the throttle body electrical connector and wiring harness retainer.
- Remove the PCV tube. Refer to: Quick Release Coupling
.
- Disconnect the MAPT electrical connector and the wire harness retainers from the intake manifold.
-
- Disconnect the fuel vapor tube to the intake manifold. Refer to: Quick Release Coupling .
- Disconnect the vacuum hose.
- Disconnect the hose couplings at turbocharger outlet tube. Refer to: Quick Release Coupling
.
-

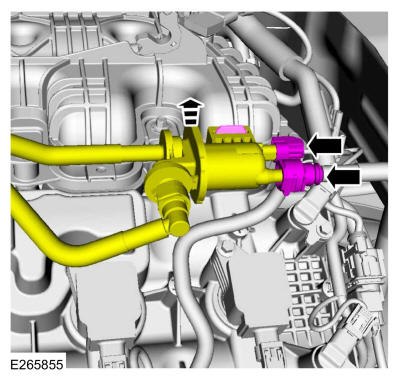

- Disconnect the EVAP purge solenoid electrical connector and quick connect coupling. Refer to: Quick Release Coupling .
- Lift the EVAP purge valve off of the intake manifold mounting tab.

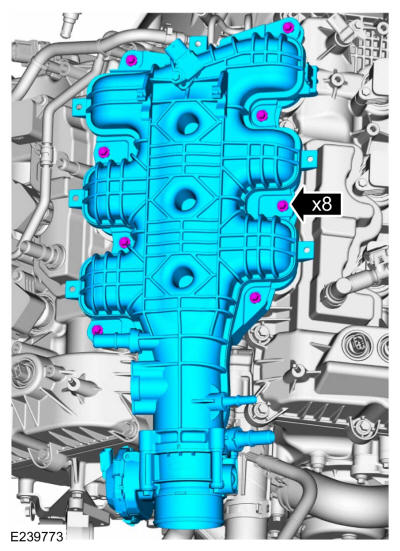

- Remove the bolts and the intake manifold.
-

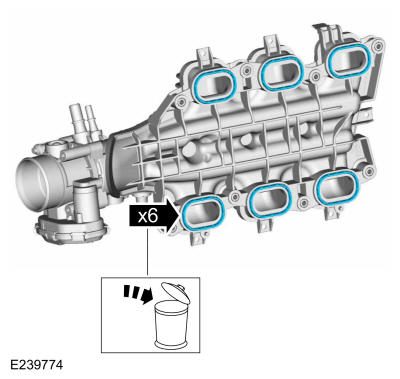

- Remove and discard the intake manifold gaskets.
- Clean and inspect all of the sealing surfaces of the cylinder heads and the intake manifold.
