Cylinder Head RH: Installation

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

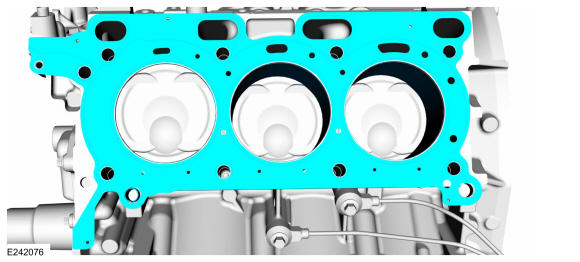

Install the RH cylinder head gasket.

Courtesy of FORD MOTOR COMPANY
NOTE: Install new cylinder head bolts.

Install the RH cylinder head and the new bolts. Tighten in the sequence shown in 5 stages.

Torque:

Stage 1: 177 lb.in (20 Nm)

Stage 2: 33 lb.ft (45 Nm)

Stage 3: 90°

Stage 4: 90°

Stage 5: 90°

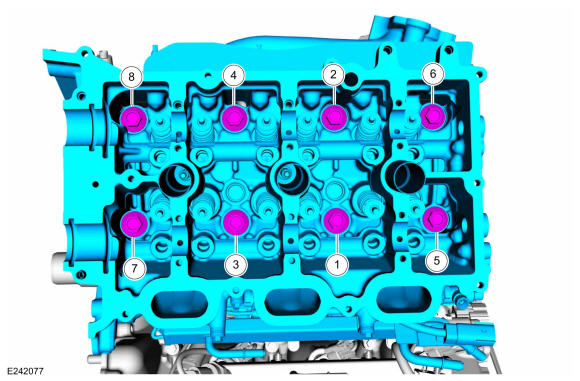

Fig 1: RH Cylinder Head Tightening Sequence
Courtesy of FORD MOTOR COMPANY

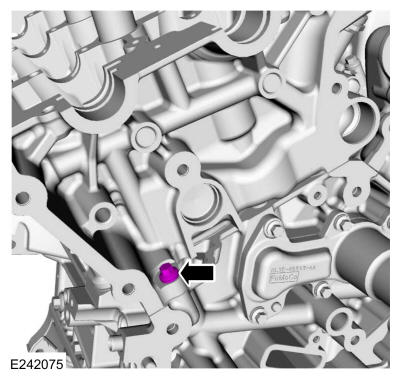

Install the RH M6 bolt.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

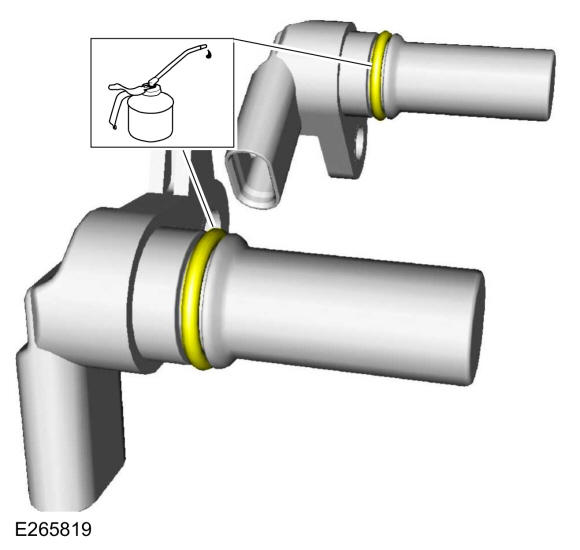

Lubricate the CMP sensor O-ring seal with clean engine oil.
Material: Motorcraft® SAE 5W-30 Synthetic Blend Motor Oil / XO-5W30-QSP (WSS-M2C946-A)

Courtesy of FORD MOTOR COMPANY

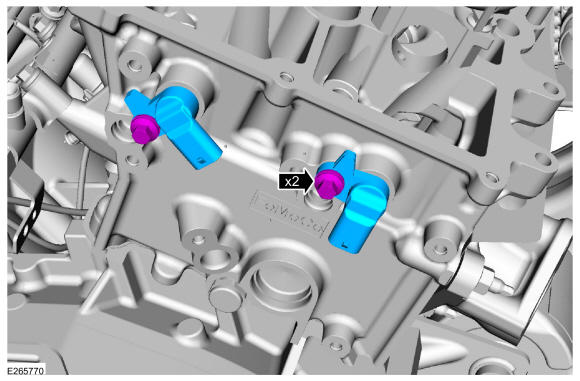

Install the bolts and the CMP sensors.
Torque: 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY

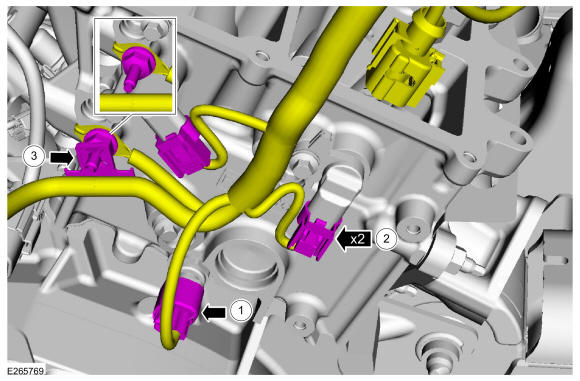

- Connect the CHT sensor electrical connector.
- Connect the CMP sensor electrical connectors.
- Install the wiring harness ground and the studbolt. Position back the wire retainer.
  Torque:

  Stage 1: 89 lb.in (10 Nm)

  Stage 2: 20°
Courtesy of FORD MOTOR COMPANY

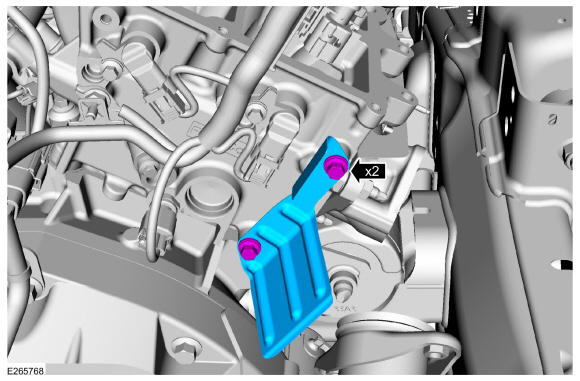

Install the heat shield and the retainers.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

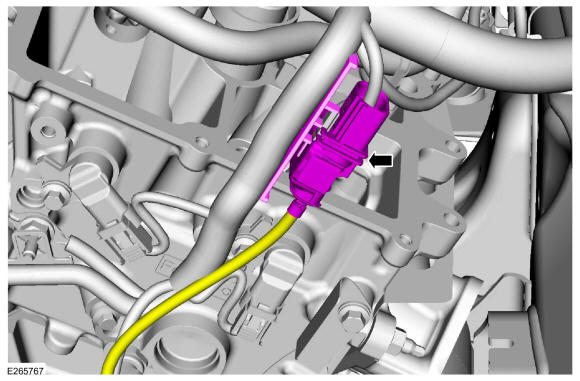

Connect the HO2S electrical connector and install the harness retainer.

Courtesy of FORD MOTOR COMPANY
Connect the fuel supply tube. Refer to: Spring Lock Couplings .

Courtesy of FORD MOTOR COMPANY
Install the fuel supply tube spring lock coupling retainer.

Courtesy of FORD MOTOR COMPANY
- Connect the high-pressure fuel tube, tighten the flare nut and the bolt.
  Torque:

  For the high-pressure fuel tube:

  Stage 1: 89 lb.in (10 Nm)

  Stage 2: 30°

  For the bolt:

  Stage 3: 89 lb.in (10 Nm)

  Stage 4: 45°
- Connect the fuel supply tube quick connect coupling. Refer to: Quick Release Coupling .
Courtesy of FORD MOTOR COMPANY
- Connect the RH and LH port injection fuel rail electrical connectors.
- Connect the RH and LH direct injection fuel rail electrical connectors.
Courtesy of FORD MOTOR COMPANY
Position the flare nuts and connect the fuel rail-to-fuel rail high-pressure fuel tube.
Torque:

Stage 1: 89 lb.in (10 Nm)

Stage 2: 30°

Courtesy of FORD MOTOR COMPANY
Connect the fuel supply tubes. Refer to: Spring Lock Couplings .

Courtesy of FORD MOTOR COMPANY
Install the fuel supply tube spring lock coupling retainers.

Courtesy of FORD MOTOR COMPANY
Install the RH camshaft. Refer to: Camshaft RH .
Install the RH turbocharger. Refer to: Turbocharger RH .
Connect the battery ground cable. Refer to: Battery Cables .
