Engine Block Skirt Stiffener

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING .

Special Tool(s) / General Equipment

GFD271389Courtesy of FORD MOTOR COMPANY
303-1246 Engine Spreader Bar, TKIT-2006UF-FLM, TKIT-2006UF-ROW
GFD271390Courtesy of FORD MOTOR COMPANY
303-1654 Lift Eyes
Floor Crane
Mounting Stand

Materials

Name Specification
Motorcraft® High Performance Engine RTV Silicone TA-357 WSE-M4G323-A6
Motorcraft® Metal Surface Prep WipesZC-31-B -
Motorcraft® Metal Brake Parts CleanerPM-4-A, PM-4-B -
NOTE: Failure to use Motorcraft® High Performance Engine RTV Silicone may cause the engine oil to foam excessively and result in serious engine damage.

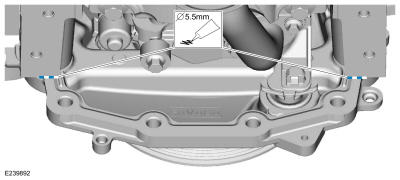

  1. Apply a 5.5 mm bead of Motorcraft® High Performance Engine RTV Silicone to the 2 engine front cover-to-cylinder block joint areas.
    GFD273015Courtesy of FORD MOTOR COMPANY
  2. NOTE: The engine block skirt stiffener and the bolts must be installed with 4 minutes of sealant application. Final tightening of the engine block skirt stiffener bolts must be carried out within 60 minutes of sealant application.

    Apply a 4.0 mm (0.16) bead of Motorcraft® High Performance Engine RTV Silicone to the engine block skirt stiffener.

    GFD272836Courtesy of FORD MOTOR COMPANY
  3. Apply a 5.5 mm bead of Motorcraft High Performance Engine RTV Silicone to the 2 crankshaft seal retainer plate-to-cylinder block joint areas on the sealing surface of the engine block skirt stiffener.
    GFD272837Courtesy of FORD MOTOR COMPANY
  4. NOTE: The oil pan and the specified bolts must be installed within 4 minutes of the start of sealant application.

    Install the engine block skirt stiffener and the bolts finger-tight.

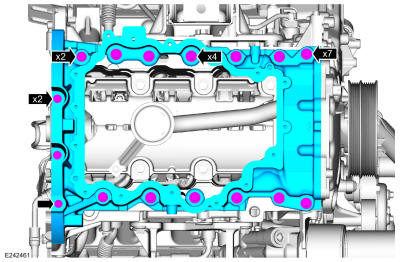

    GFD273016Courtesy of FORD MOTOR COMPANY

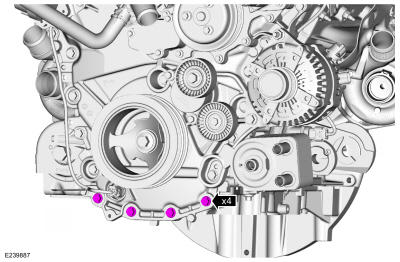

  5. Install the engine front cover bolts finger-tight.
    GFD273017Courtesy of FORD MOTOR COMPANY

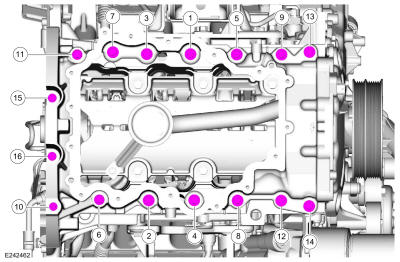

  6. Tighten the engine block skirt stiffener bolts in the sequence shown.

    Torque:

    Stage 1: Tighten bolts 1 thru 14 to: 177 lb.in (20 Nm)

    Stage 2: Tighten bolts 15 and 16 to: 89 lb.in (10 Nm)

    Stage 3: Tighten bolts 1 thru 9 to: 45°

    Stage 4: Tighten bolt 10 to: 90°

    Stage 5: Tighten bolts 11 thru 16 to: 45°

    Fig 1: Engine Block Skirt Stiffener Tightening Sequence
    GFD273018Courtesy of FORD MOTOR COMPANY
  7. Tighten the engine front cover bolts.

    Torque:

    Stage 1: 177 lb.in (20 Nm)

    Stage 2: 45°

    GFD273017Courtesy of FORD MOTOR COMPANY

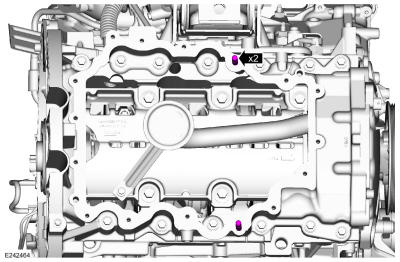

  8. NOTE: Use guide studs to aid in installation. Studs must be fabricated locally.

    Install the two guide studs.

    GFD273019Courtesy of FORD MOTOR COMPANY

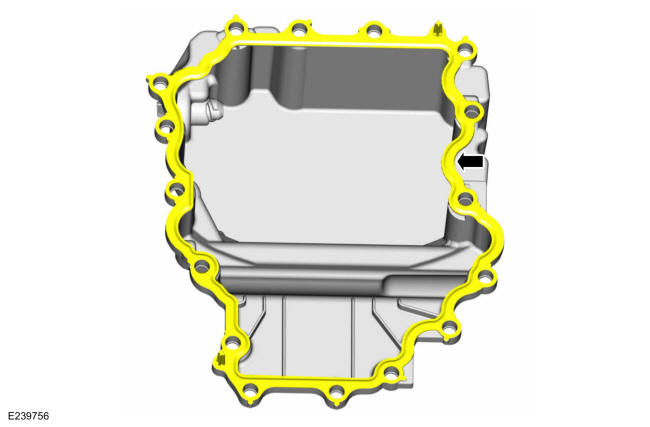

  9. Make sure that the mating faces of the new oil pan is clean and free of foreign material. Refer to: RTV Sealing Surface Cleaning and Preparation .

    Material: Motorcraft® Metal Surface Prep Wipes / ZC-31-B

    Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

    GFD273020Courtesy of FORD MOTOR COMPANY
  10. NOTE: The oil pan must be installed and the oil pan aligned to the cylinder block within 4 minutes of sealant application and the bolts must be installed and tighten to 2-5 Nm (18-44 in-lbs) within 15 minutes of applying the sealant. Final tightening of the oil pan bolts must be carried out within 60 minutes of sealant application.

    Apply a 4 mm (0.16 in) bead of Motorcraft® High Performance Engine RTV Silicone to the sealing surface of the oil pan.

    Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

    GFD272844Courtesy of FORD MOTOR COMPANY
  11. NOTE: It will be necessary to remove the guide studs before installing the remaining bolts.

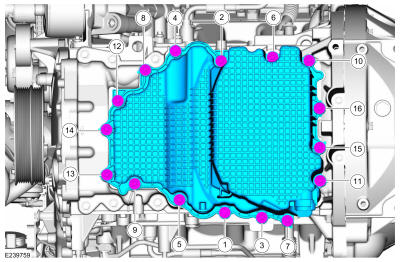

    Install the oil pan and the bolts. Tighten in the sequence shown.

    Torque:

    Stage 1: 89 lb.in (10 Nm)

    Stage 2: 45°

    GFD273021Courtesy of FORD MOTOR COMPANY
  12. Install the A/C compressor and the bolts. Tighten in the sequence shown.

    Torque: 18 lb.ft (25 Nm)

    GFD273022Courtesy of FORD MOTOR COMPANY
  13. Using a floor crane, remove the engine from the mounting stand. Use Special Service Tool: 303-1246 Engine Spreader Bar., 303-1654 Lift Eyes. Use the General Equipment: Floor Crane Use the General Equipment: Mounting Stand.
    GFD272943Courtesy of FORD MOTOR COMPANY

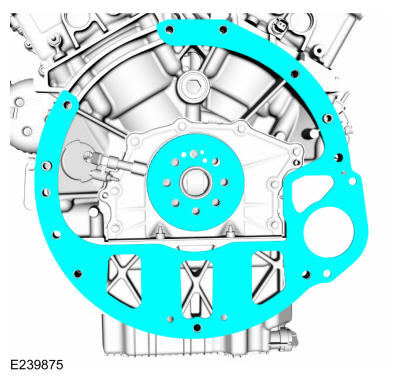

  14. Install the crankshaft sensor ring and the engine-to-transmission spacer plate.
    GFD271391Courtesy of FORD MOTOR COMPANY
  15. NOTE: The offset hole may be used in four locations.

    Install the flexplate and the bolts. Tighten in the sequence shown.

    Torque: 59 lb.ft (80 Nm)

    GFD272944Courtesy of FORD MOTOR COMPANY

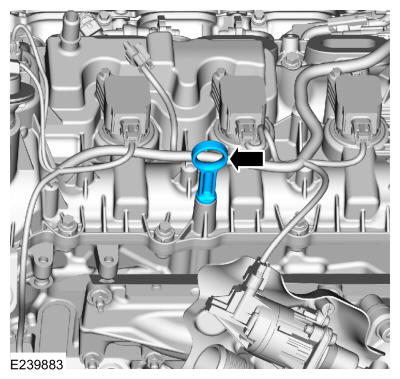

  16. Install the oil level indicator.
    GFD273023Courtesy of FORD MOTOR COMPANY
  17. Install the engine into the vehicle. Refer to: Engine .
