Exploded View Of Lower Engine Block

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

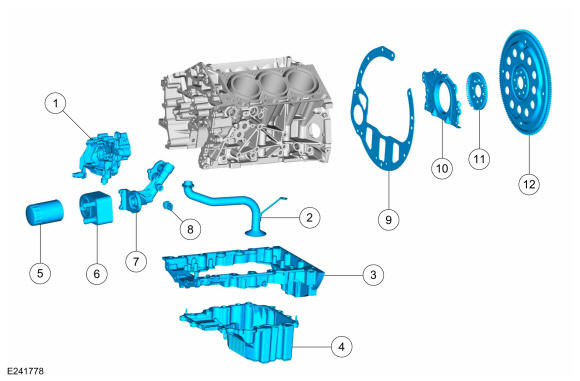

Lower Engine Block (View 1 early build)

Courtesy of FORD MOTOR COMPANY

Item	Part Number	Description
1	6621	Oil pump
2	6622	Oil pump screen and pickup tube
3	6U004	Stiffener assembly - engine block skirt
4	6675	Oil pan
5	6714	Engine oil filter
6	6A642	Engine oil cooler
7	6881	Oil filter adapter
8	9D290	Oil pressure sensor
9	6A373	Engine-to-transmission spacer plate
10	6K301	Crankshaft rear seal retainer
11	12A227	Crankshaft sensor ring
12	6375	Flexplate

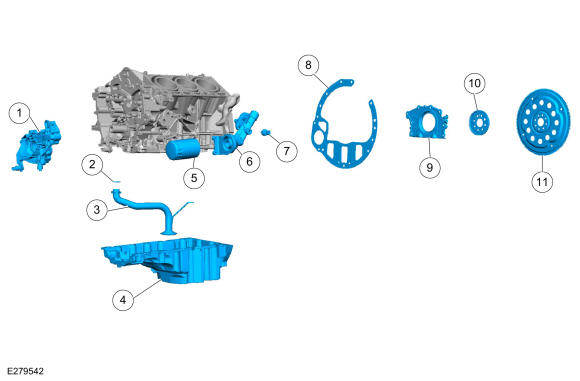

Lower Engine Block (View 1 late build)

Courtesy of FORD MOTOR COMPANY

Item	Part Number	Description
1	6621	Oil pump
2	6625	Oil pump screen and pickup tube O-ring seal
3	6622	Oil pump screen and pickup tube
4	6675	Oil Pan
5	6714	Engine oil filter
6	6881	Oil filter adapter
7	9D290	Oil pressure sensor
8	6A373	Engine-to-transmission spacer plate
9	6K301	Crankshaft rear seal retainer
10	12A227	Crankshaft sensor ring
11	6375	Flexplate

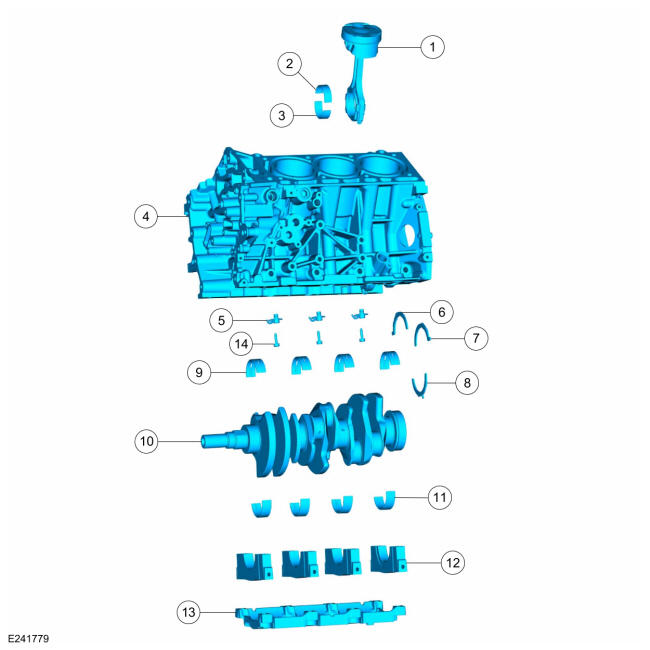

Lower Engine Block (View 2)

Courtesy of FORD MOTOR COMPANY

Item	Part Number	Description
1	6110	Piston and connecting rod assembly (6 required)
2	6211	Connecting rod upper bearing (6 required)
3	6211	Connecting rod lower bearing (6 required)
4	6010	Cylinder block
5	6K868	Piston oil coolers (3 required)
6	6A341	Crankshaft upper thrust inner washer
7	6A341	Crankshaft upper thrust outer washer
8	6K302	Crankshaft lower thrust washer
9	6333	Cylinder block crankshaft main bearing (4 required)
10	6303	Crankshaft
11	6A338	Lower crankshaft main bearings (4 required)
12	6325	Lower crankshaft main bearing caps (4 required)
13	6C364	Main bearing cap support brace
14	W718498	Mounting bolt - Piston oil cooler (3 required)
