Steering Wheel Multifunction Switch: Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: High series shown, others similar.
  1. Remove the driver airbag. Refer to: Driver Airbag .

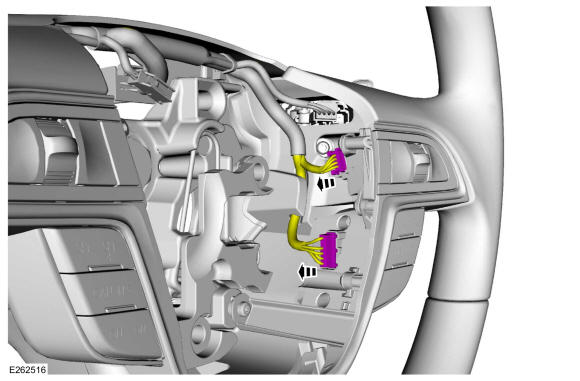

  2. On both sides. Disconnect the steering wheel switch electrical connectors.
    GFD272154Courtesy of FORD MOTOR COMPANY

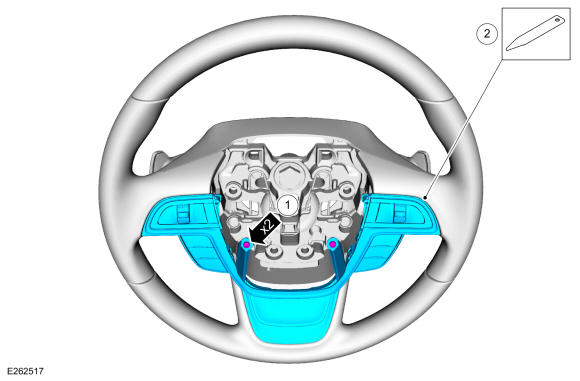

    1. Remove the steering wheel switch bezel screws.
    2. Using a suitable flat-bladed tool, remove the steering wheel switch bezel.
    GFD272155Courtesy of FORD MOTOR COMPANY

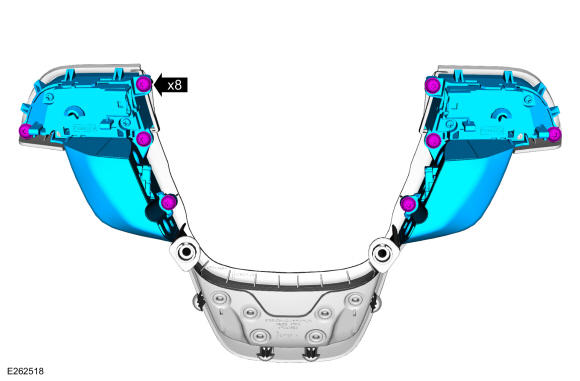

  4. Remove the screws and the steering wheel multifunction switches.
GFD272156Courtesy of FORD MOTOR COMPANY
