Brake Pedal Control Switch: Removal
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Detach the clips and remove the lower steering column opening cover.
- Detach the clips and remove the instrument panel lower side trim panel.
- Detach the clips and remove the instrument panel upper side trim panel.
- Remove the bolts, disconnect the electrical connectors and remove the register and switch panel assembly.
Torque: 22 lb.in (2.5 Nm)

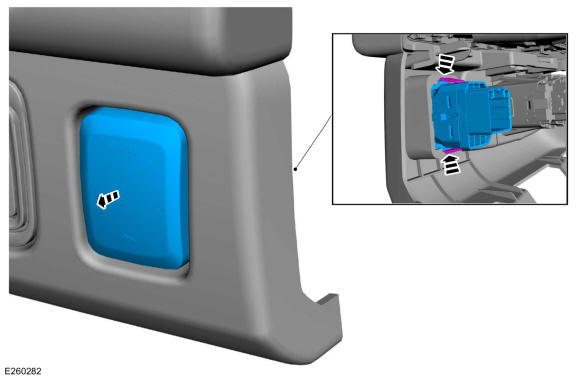

- Press inward on the tabs and remove the adjustable pedal control switch.
