Differential Bearings: Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

Remove the axle assembly. Refer to: Axle Assembly .
Remove the differential carrier. Refer to: Differential Carrier .
Remove the drive pinion flange and seal. Refer to: Drive Pinion Flange and Seal .
Remove the outer drive pinion oil slinger.

Courtesy of FORD MOTOR COMPANY
Using the special tool and a soft hammer, remove the pinion gear. Use Special Service Tool: 205-460 Protector, Drive Pinion Thread. Use the General Equipment: Copper Hammer

Courtesy of FORD MOTOR COMPANY
Remove the outer drive pinion bearing.

Courtesy of FORD MOTOR COMPANY
Remove and discard the drive pinion collapsible spacer.

Courtesy of FORD MOTOR COMPANY
Remove the inner drive pinion bearing. Use the General Equipment: Bearing Separator

Courtesy of FORD MOTOR COMPANY
Remove the inner drive pinion bearing adjustment shim.

Courtesy of FORD MOTOR COMPANY

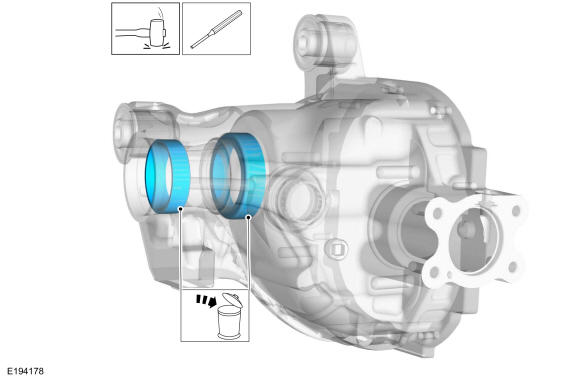

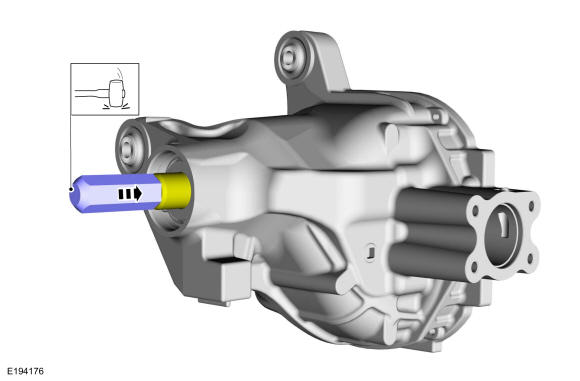

Using the general equipment, remove and discard the drive pinion inner and outer bearing cups. Use the General Equipment: Copper HammerUse the General Equipment: Punch

Courtesy of FORD MOTOR COMPANY

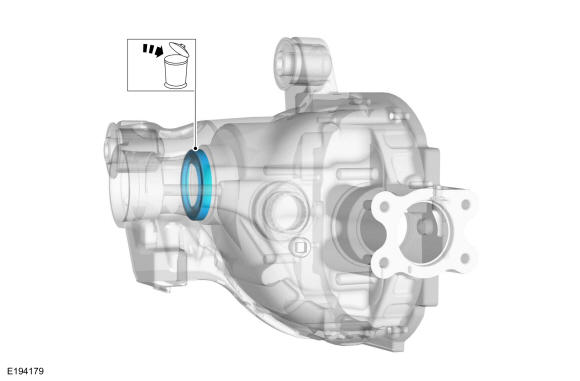

If necessary.Remove and discard the drive pinion oil baffle.

Courtesy of FORD MOTOR COMPANY

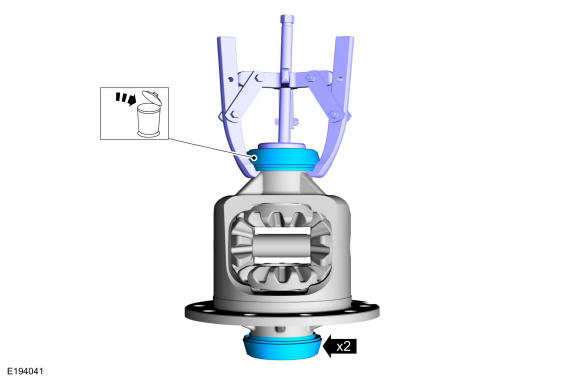

Using the general equipment and the special tool, remove and discard the differential bearings. Use Special Service Tool: 205-D061 (D83T-4205-C2) Step Plate. Use the General Equipment: Three Leg Puller
