Differential Draining and Filling
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting .

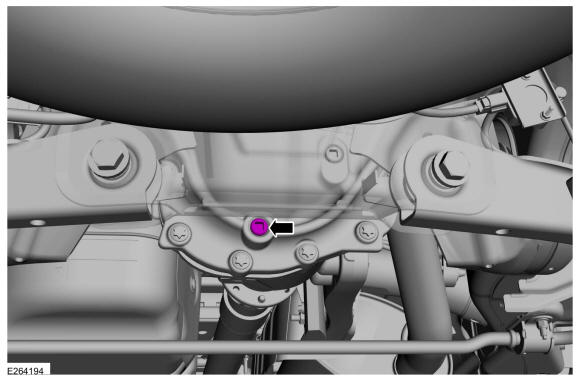

- Remove the rear axle fluid drain plug and allow the axle fluid to drain.
Filling
- Install the rear axle fluid drain plug.
Torque: 18 lb.ft (25 Nm)

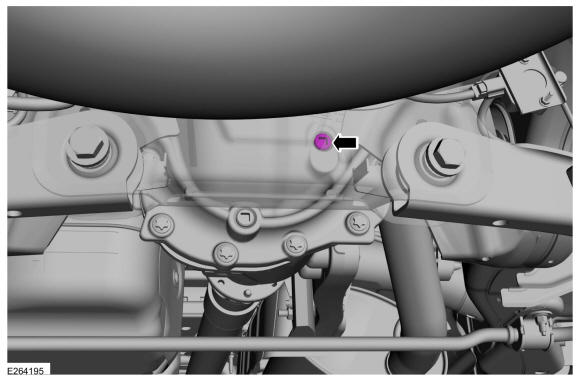

- Remove the rear axle fluid fill plug.

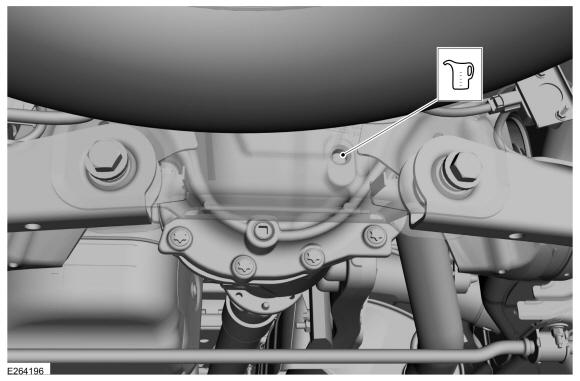

- Fill the differential with clean differential gear lubricant. Refer to: Specifications .
- Install the rear axle fluid fill plug.
Torque: 18 lb.ft (25 Nm)
