Wheel Bearing and Wheel Hub: Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Suspension fasteners are critical parts that affect the performance of vital components and systems. Failure of these fasteners may result in major service expense. Use the same or equivalent parts if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Tighten fasteners as specified.

Remove the wheel and tire. Refer to: Wheel and Tire .

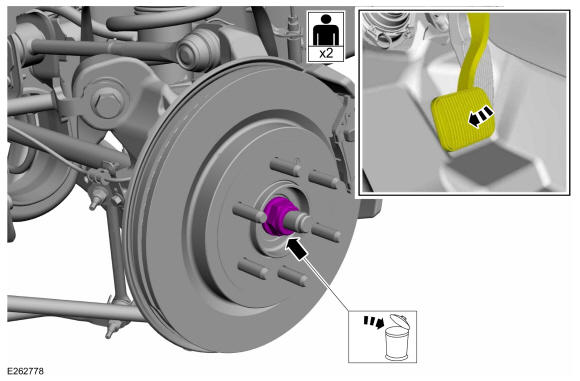

NOTE: Apply the brake to keep the halfshaft from rotating.

Remove and discard the wheel hub nut.

Courtesy of FORD MOTOR COMPANY
Remove the brake disc shield. Refer to: Brake Disc Shield .

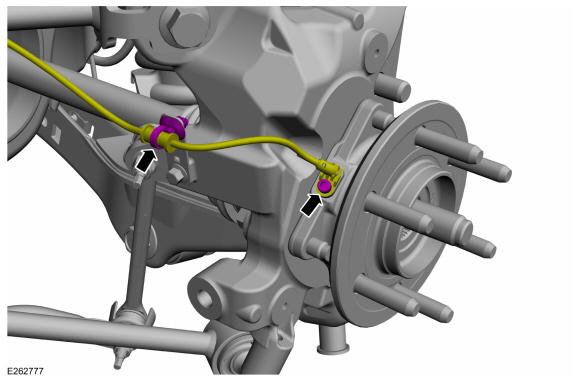

Remove the retainer and wheel speed sensor bolt, position aside the wheel speed sensor.

Courtesy of FORD MOTOR COMPANY

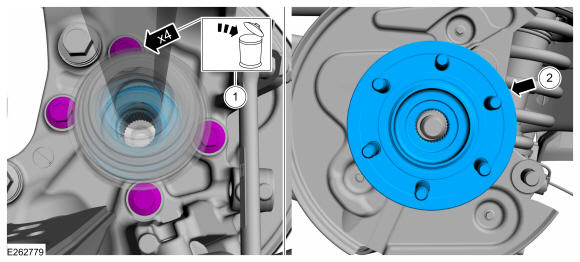

1. Remove and discard the 4 wheel bearing and wheel hub bolts.
2. Remove the wheel bearing and wheel hub.

Courtesy of FORD MOTOR COMPANY
