Shock Absorber and Spring Assembly: Installation

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

Install the shock absorber and the upper mount.Use the General Equipment: Spring Compressor

Courtesy of FORD MOTOR COMPANY
NOTE: If the individual spring and/or shock components are not being serviced, continue to the installation procedure.

NOTE: For reference during assembly, index the upper mount, spring and shock absorber.

Compress the spring until the tension is released from the shock absorber.Use the General Equipment: Spring Compressor

Courtesy of FORD MOTOR COMPANY
NOTE: Use the hex-holding feature to prevent the shock rod from turning while installing the nut.

While holding the shock rod, install the new shock absorber and the shock rod nut.

Torque: 41 lb.ft (55 Nm)

Courtesy of FORD MOTOR COMPANY

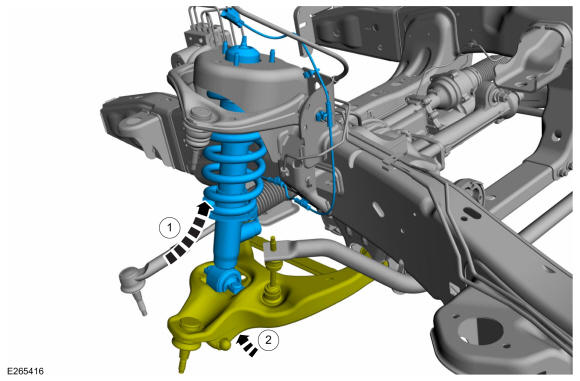

1. Install the shock absorber and spring assembly.
2. Position the lower arm up.
Courtesy of FORD MOTOR COMPANY
Install the new shock absorber and spring assembly upper nuts.
Torque: 46 lb.ft (63 Nm)

Courtesy of FORD MOTOR COMPANY
Install the new shock absorber and spring assembly lower nuts.
Torque: 66 lb.ft (90 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Do not use power tools to remove or install the stabilizer bar link nuts. Damage to the stabilizer bar link ball joints and boots may occur.

NOTE: The stabilizer bar links are designed with low friction ball joints that have a low breakaway torque.

NOTE: Use the hex-holding feature to prevent the ball stud from turning while removing or installing the stabilizer bar link nut.

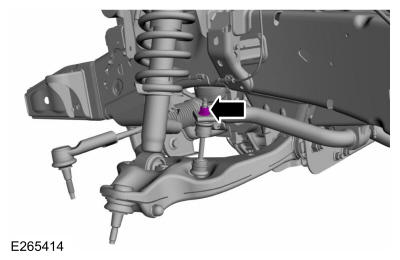

Install the new front stabilizer link upper nut.

Torque: 59 lb.ft (80 Nm)

Courtesy of FORD MOTOR COMPANY
1. Install the wheel knuckle.
2. Install the new lower ball joint nut.
  Torque: 76 lb.ft (103 Nm)
Courtesy of FORD MOTOR COMPANY
Install the new upper ball joint nut.
Torque: 46 lb.ft (63 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: The suspension height sensors must be disconnected prior to servicing suspension components. Damage to the suspension height sensors and/or the vehicle dynamic suspension system may occur. The sensors will need to be recalibrated after reassembly.

NOTE: If equipped with dynamic suspension.

Position the height sensor arm bracket and install the height sensor arm bracket screw.

Torque: 177 lb.in (20 Nm)

Courtesy of FORD MOTOR COMPANY
Install the IWE bolts.
Torque: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY
Position the brake hose bracket and install the brake hose bracket bolt.
Torque: 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY

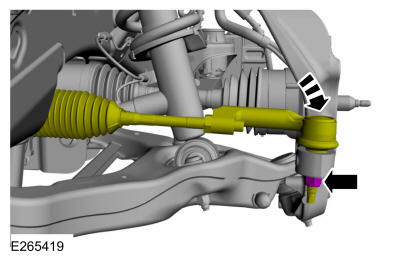

Position the tie rod end and install the new tie rod end nut.
Torque: 76 lb.ft (103 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: While placing the wheel bearing and wheel hub into the wheel knuckle, hold the CV outboard joint with outboard pressure to maintain spline engagement with the IWE actuator gear.

Using a hand vacuum pump apply and hold 24 inHg of vacuum to the IWE actuator through the large port on IWE to retract the actuator.

Courtesy of FORD MOTOR COMPANY
NOTE: Measure the depth of the CV shaft threaded end to the inner bearing race (shown in illustration). The minimum depth is 15.5 mm (0.61 in). If the depth is less than 15.5 mm (0.61 in) rotate the CV shaft to clear a binding condition between the IWE and CV splines. Installing the axle nut and tightening without the proper depth of protrusion will result in damage to the IWE.

Measure the CV shaft threaded end to the inner bearing race.

Courtesy of FORD MOTOR COMPANY
NOTE: Verify the spline engagement by checking for spline lash before installing the wheel hub nut or component damage may occur.

NOTE: With vacuum still applied to the IWE.

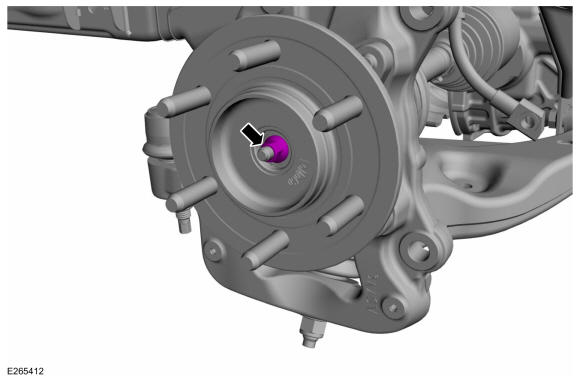

1. Install the new the axle nut.
  Torque: 30 lb.ft (40 Nm)
2. Verify free rotation of the hub with no CV joint rotation. No clicking or grinding noise should be present.
3. Release vacuum and rotate bearing slightly to engage actuator (may hear single click when IWE system engages). Verify hub and CV joint rotate together.
Courtesy of FORD MOTOR COMPANY
NOTE: If the dust cap to bearing interface is damaged, damaged parts must be replaced.

Install the dust cap.

Courtesy of FORD MOTOR COMPANY
1. Position the wheel speed sensor wire and install the wheel speed sensor wire bracket bolt.
  Torque: 106 lb.in (12 Nm)
2. Install the wheel speed sensor wire bracket bolt on the wheel knuckle.
  Torque: 106 lb.in (12 Nm)
3. Clip the wheel speed sensor wire to the brake hose and bracket.
Courtesy of FORD MOTOR COMPANY
NOTE: The wheel speed sensor electrical connector is located in the engine compartment secured to the fender apron.

Connect the wheel speed sensor electrical connector.

Courtesy of FORD MOTOR COMPANY
Install the brake disc. Refer to: Brake Disc Shield .
NOTE: If equipped with dynamic suspension.

NOTE: RH side only.
- Connect the shock absorber and spring assembly electrical connector on the RH side frame.
- Position the shock absorber and spring assembly wiring harness and connect the wiring harness clips into the frame.
Courtesy of FORD MOTOR COMPANY
NOTE: If equipped with dynamic suspension.

NOTE: LH side only.

Connect the shock absorber and spring assembly electrical connector.

Courtesy of FORD MOTOR COMPANY
NOTE: If equipped with dynamic suspension.

NOTE: LH side only.
- Connect the shock absorber and spring assembly wiring harness clips.
Courtesy of FORD MOTOR COMPANY
Install the wheel and tire. Refer to: Wheel and Tire .
If equipped with dynamic suspension, calibrate the suspension height sensor. Connect the scan tool and carry out the Ride Height Calibration routine. Follow the scan tool directions.
