WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

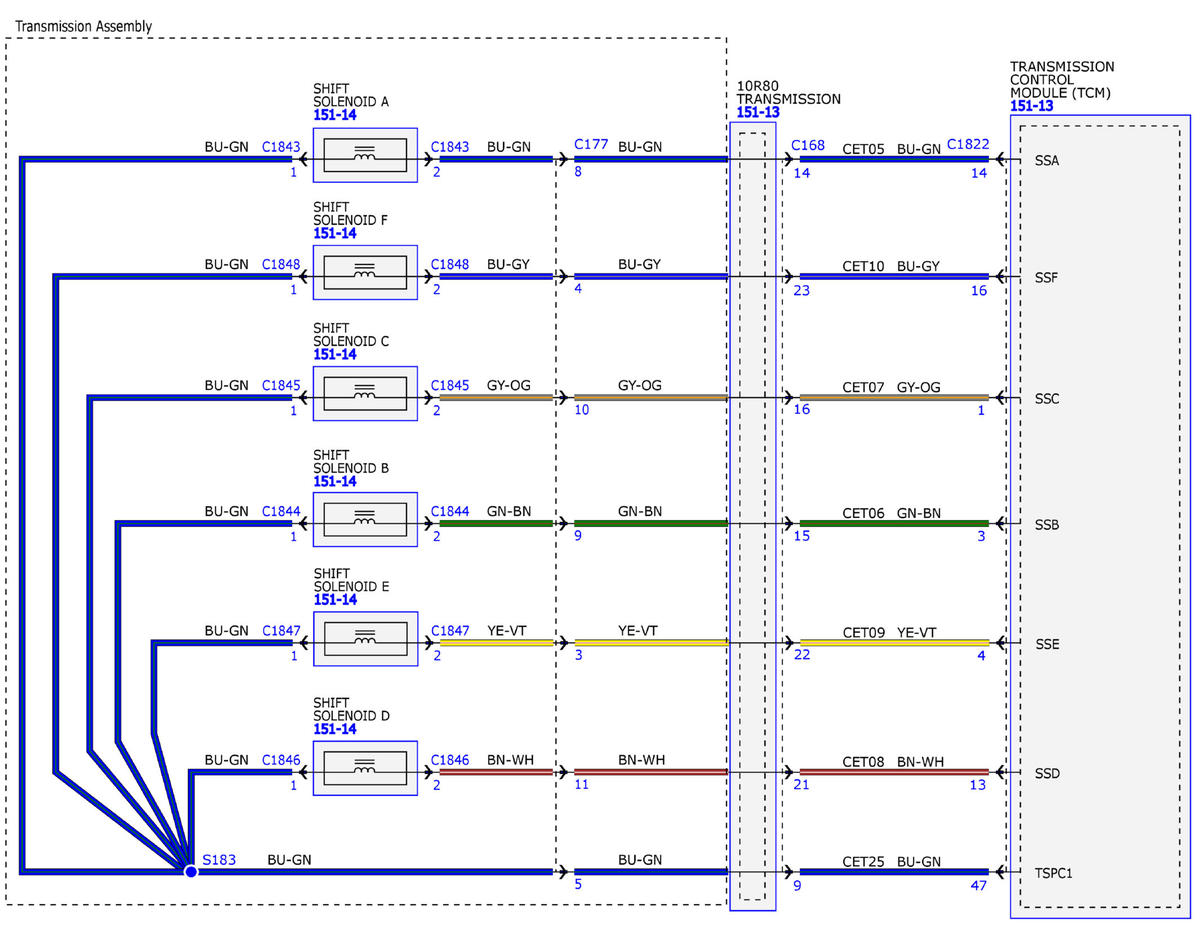

Fig 1: Transmission Controls Wiring Diagram (1 Of 12)
Courtesy of FORD MOTOR COMPANY

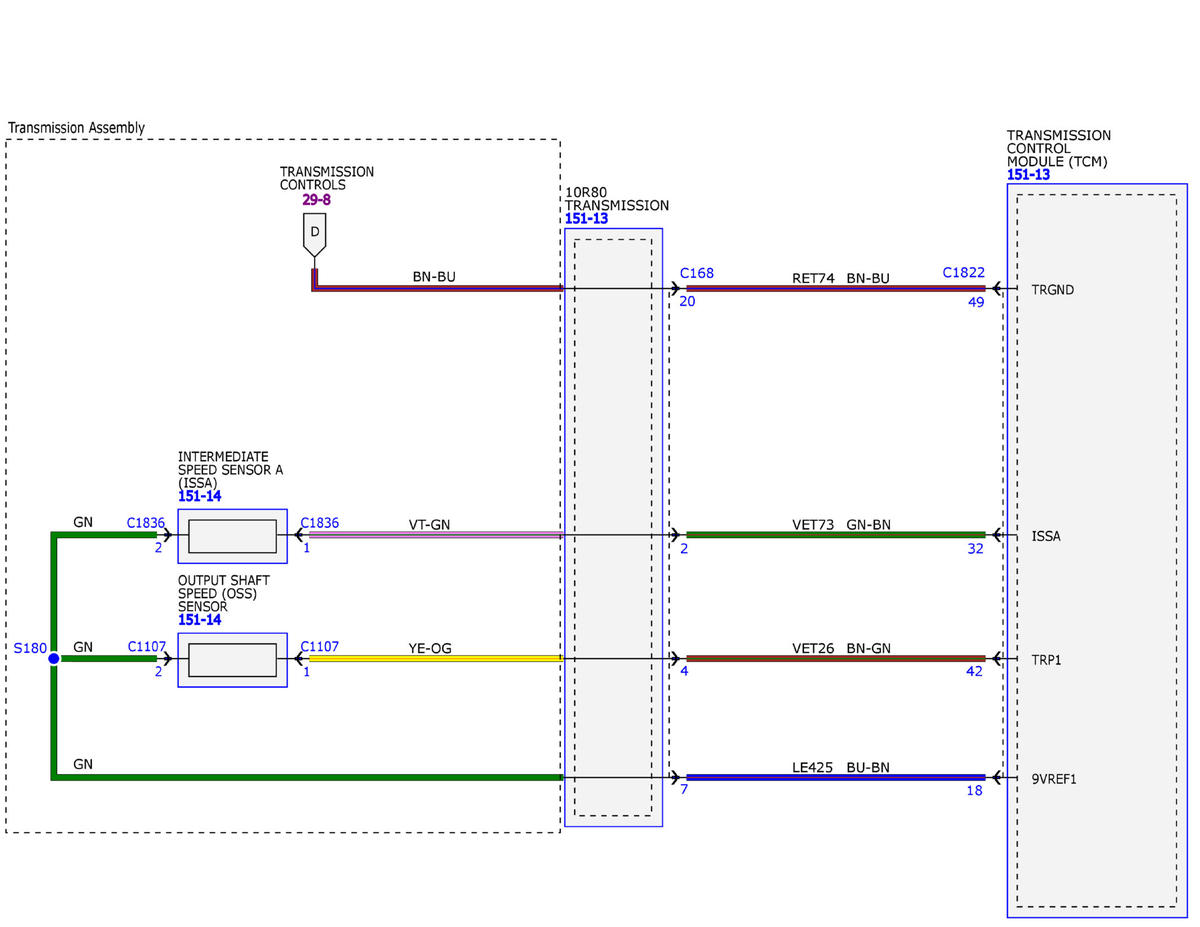

Fig 2: Transmission Controls Wiring Diagram (2 Of 12)
Courtesy of FORD MOTOR COMPANY
Fig 3: Transmission Controls Wiring Diagram (3 Of 12)
Courtesy of FORD MOTOR COMPANY
Fig 4: Transmission Controls Wiring Diagram (4 Of 12)
Courtesy of FORD MOTOR COMPANY
Fig 5: Transmission Controls Wiring Diagram (5 Of 12)
Courtesy of FORD MOTOR COMPANY
Fig 6: Transmission Controls Wiring Diagram (6 Of 12)
Courtesy of FORD MOTOR COMPANY
Fig 7: Transmission Controls Wiring Diagram (7 Of 12)
Courtesy of FORD MOTOR COMPANY
Fig 8: Transmission Controls Wiring Diagram (8 Of 12)
Courtesy of FORD MOTOR COMPANY
Fig 9: Transmission Controls Wiring Diagram (9 Of 12)
Courtesy of FORD MOTOR COMPANY
Fig 10: Transmission Controls Wiring Diagram (10 Of 12)
Courtesy of FORD MOTOR COMPANY
Fig 11: Transmission Controls Wiring Diagram (11 Of 12)
Courtesy of FORD MOTOR COMPANY
Fig 12: Transmission Controls Wiring Diagram (12 Of 12)
