Shift Interlock

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

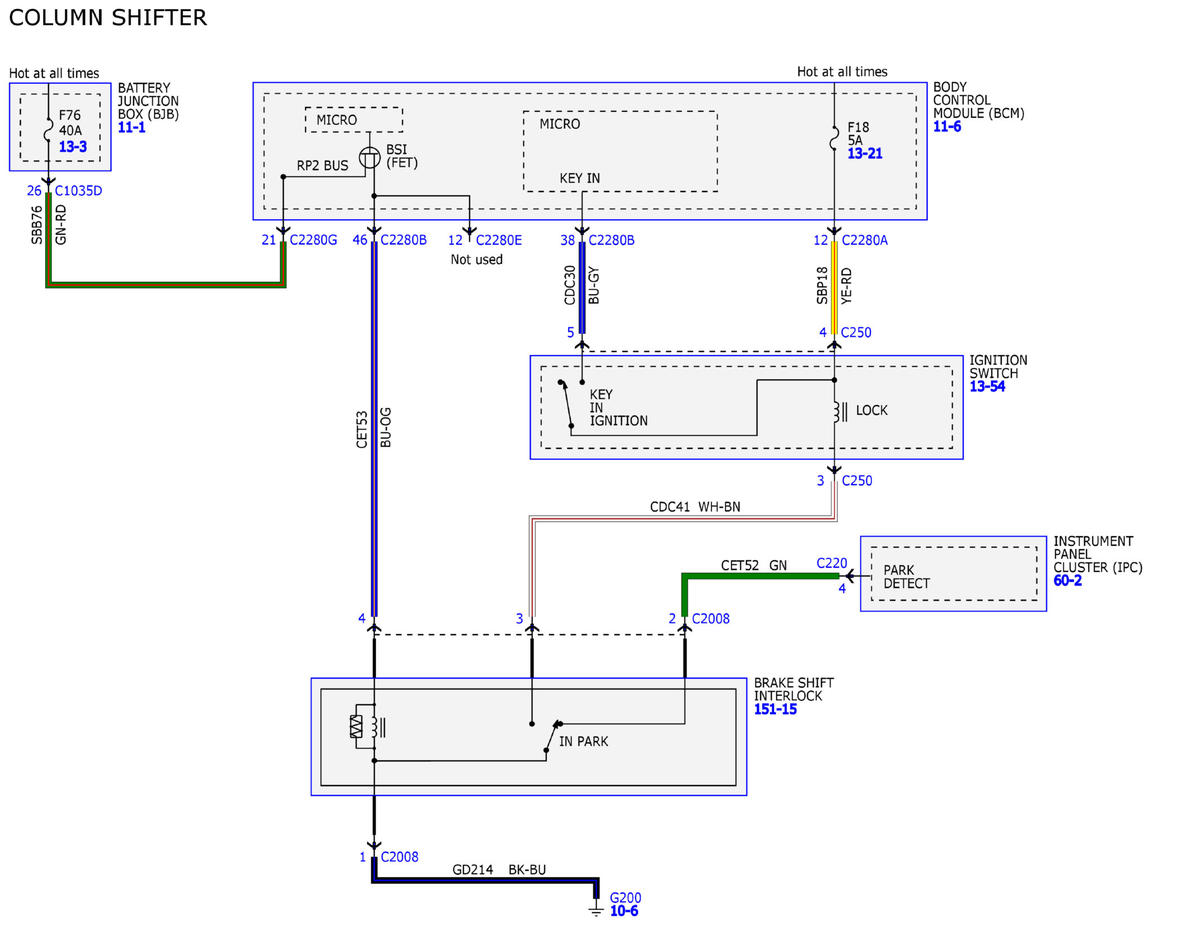

Fig 1: Shift Interlock Wiring Diagram
GFDW102373Courtesy of FORD MOTOR COMPANY
