Section 1054 (OEM Wiring Diagrams)
>>
Charging System
Charging System
WARNING:
This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

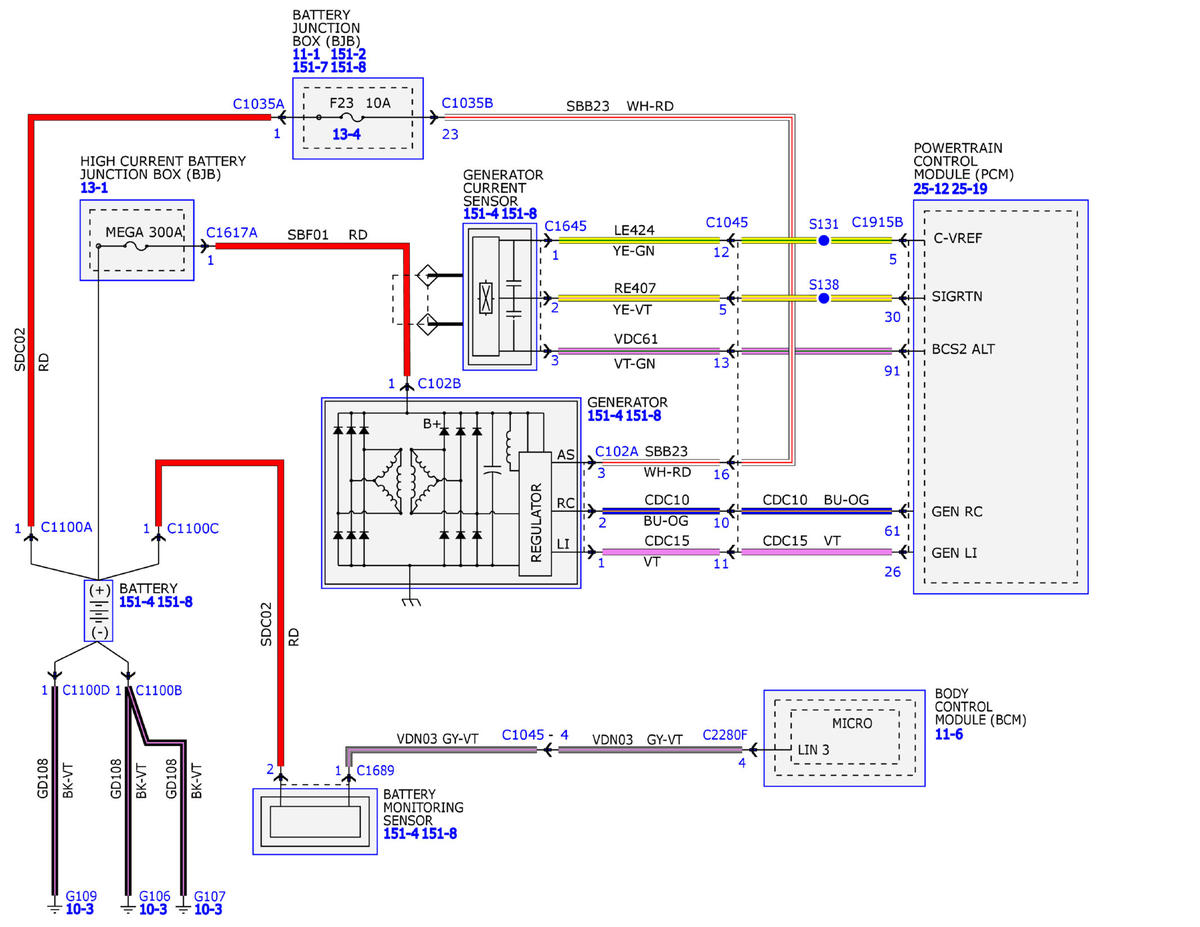

Fig 1: Charging System Wiring Diagram
Courtesy of FORD MOTOR COMPANY
