Connector End View C914 - Rain Sensor Module
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
DESCRIPTION
RAIN SENSOR MODULE
COLOR
HARNESS
14335
BASE PART #
PART# N/A
SERVICE PIGTAIL
SEE BELOW
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CBB10 (YE-OG) | 22 | FUSE - OR CIRCUIT BREAKER | |
| 2 | VX107 (YE-GY) | 22 | CTRL MOD. - LIN BUS # STEERING WHEEL CONTROL MODULE 1 | |
| 3 | GD238 (BK-WH) | 22 | GROUND - COWL SIDE/PILLAR A RIGHT |

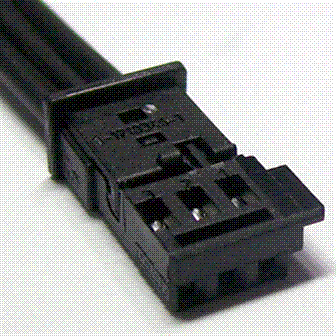

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1096 |
Service Part Number: AU2Z-14S411-ZA Gauge: 18 Pin material: Tin (greased) Cavities: 3 Vehicle Uses Sensor - Rain |
