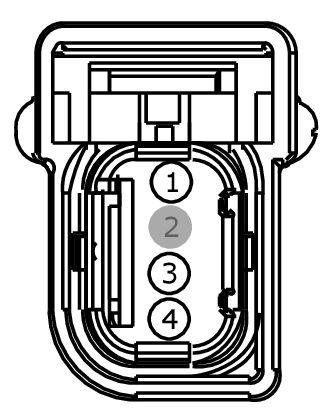

Connector End View C573 - Exterior Front Door Handle LH
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
DESCRIPTION
EXTERIOR FRONT DOOR HANDLE LH
COLOR
HARNESS
14631
BASE PART #
PART# N/A
SERVICE PIGTAIL
SEE BELOW
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | VPK39 (GN-VT) | 20 | SENSOR - KEYLESS VEHICLE HANDLE DRIVER POWER/DATA | |
| 2 | * | * | Not Used | |
| 3 | CLN25 (VT) | 20 | RELAY - PUDDLE LAMPS ( KERB ILLUM. ) | |
| 4 | RPK39 (VT-OG) | 20 | SENSOR - KEYLESS VEHICLE HANDLE |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1443 |
Service Part Number: FU2Z-14S411-ANA Gauge: 20 Pin material: Silver Cavities: 4 Vehicle Uses Antenna - Keyless Entry Lamp - Front Turn Lamp - Side Marker (Rear Fender) Switch - Keyless Door Handle |
