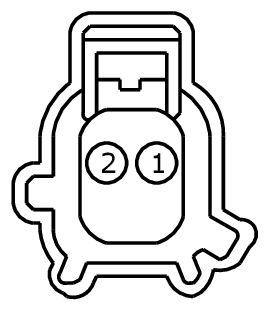

Connector End View C571 - Driver Side Impact Sensor
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
DESCRIPTION
DRIVER SIDE IMPACT SENSOR
COLOR
HARNESS
14631
BASE PART #
PART# N/A
SERVICE PIGTAIL
SEE BELOW
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | VR236 (BU-OG) | 20 | SENSOR - SIDE IMPACT PRESSURE FRONT DRIVER SIDE | |
| 2 | RR174 (WH-OG) | 20 | CTRL MOD. - SENSOR SIDE IMPACT PRESSURE FRONT DRIVER SIDE - |

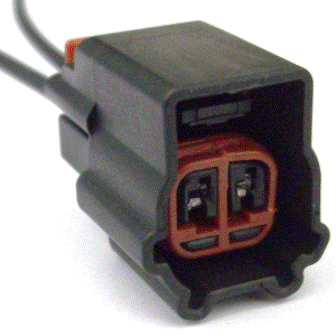

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-948 |
Service Part Number: 3U2Z-14S411-EKB Gauge: 14 Pin material: Tin (greased) Cavities: 2 Vehicle Uses Motor - Windshield Washer Fluid Pump Sensor - Side Impact |
| Pigtail Kit Part Number WPT-1566 |
Service Part Number: 3U2Z-14S411-EKC Gauge: 14 Pin material: Tin (greased) Cavities: 2 Vehicle Uses Lamp - CHMSL (Center High Mount Stop Lamp) Lamp - Reverse Lamp - Running Board Motor - Electronic Throttle Control (ETC) Motor - Windshield Washer Fluid Pump Sensor - Brake Fluid Level Sensor - Side Impact Solenoid - Air Suspension Solenoid - Variable Oil Pump Control |
