Connector End View C536 - Front Door Woofer Speaker LH

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

DESCRIPTION

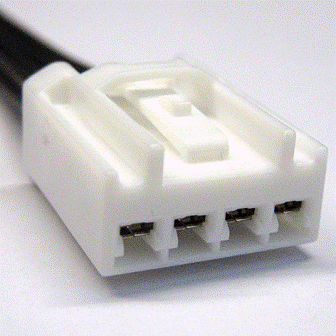

FRONT DOOR WOOFER SPEAKER LH

COLOR

HARNESS

14631

BASE PART #

PART# N/A

SERVICE PIGTAIL

SEE BELOW

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VME07 (WH)	18	CTRL MOD. - AMPLIFIER # SPEAKER LEFT FRONT FULL RANGE +
2	VME08 (GN-OG)	20	CTRL MOD. - AMPLIFIER # SPEAKER LEFT FRONT TWEETER +
3	RME08 (GY-OG)	20	CTRL MOD. - AMPLIFIER # SPEAKER LEFT FRONT TWEETER -
4	RME07 (WH-BN)	18	CTRL MOD. - AMPLIFIER # SPEAKER LEFT FRONT FULL RANGE -

Available Pigtail Kits

Pigtail Kit Part Number

WPT-912

Courtesy of FORD MOTOR COMPANY

Service Part Number:

8U2Z-14S411-HA

Gauge:

Pin material:

Tin

Cavities:
