Connector End View C485 - Speaker, Right D-Pillar

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

DESCRIPTION

SPEAKER, RIGHT D-PILLAR

COLOR

HARNESS

13A409

BASE PART #

PART# N/A

SERVICE PIGTAIL

SEE BELOW

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VMEC6 (BU-WH)	18	CTRL MOD. - AMPLIFIER # SPEAKER RIGHT REAR SURROUND +
2	RMEC6 (YE-GN)	18	CTRL MOD. - AMPLIFIER # SPEAKER RIGHT REAR SURROUND -
3	VMEC5 (BU-BN)	18	CTRL MOD. - AMPLIFIER # SPEAKER RIGHT REAR SURROUND TWEETER +
4	RMEC5 (VT-GY)	18	CTRL MOD. - AMPLIFIER # SPEAKER RIGHT REAR SURROUND TWEETER -

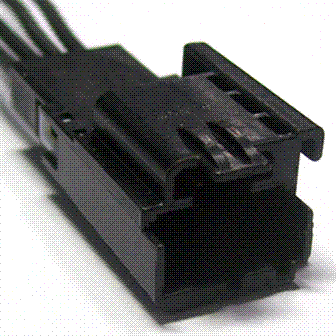

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1041

Courtesy of FORD MOTOR COMPANY

Service Part Number:

9U2Z-14S411-AJA

Gauge:

Pin material:

Tin

Cavities:

Vehicle Uses

Actuator - Door Lock - Decklid/Liftgate

Switch - Deck Lid / Lift Gate Ajar
