Connector End View C476 - Rear Window Wiper Motor
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
DESCRIPTION
REAR WINDOW WIPER MOTOR
COLOR
HARNESS
13412
BASE PART #
PART# N/A
SERVICE PIGTAIL
SEE BELOW
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CRW05 (BU) | 14 | RELAY - REAR WIPER | |
| 2 | CRW02 (GY-BU) | 20 | CTRL MOD. - REAR WIPER | |
| 3 | GD348 (BK-YE) | 14 | GROUND - PILLAR C OR QUARTER PANEL RIGHT |

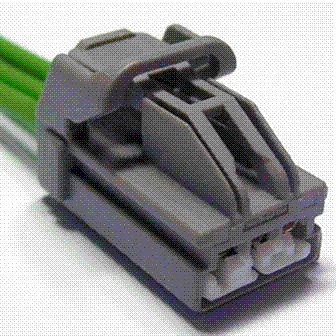

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1147 |
Service Part Number: 3U2Z-14S411-BHAB Gauge: 16 Pin material: Silver Cavities: 3 Vehicle Uses Motor - Rear Window Wiper Motor - Seat Recline Refrigerator |
