Connector End View C474 - Luggage Compartment Power Outlet Socket
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
DESCRIPTION
LUGGAGE COMPARTMENT POWER OUTLET SOCKET
COLOR
HARNESS
13A409
BASE PART #
PART# N/A
SERVICE PIGTAIL
SEE BELOW
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CBBA0 (YE-VT) | 14 | FUSE - OR CIRCUIT BREAKER | |
| 2 | * | * | Not Used | |
| 3 | GD313 (BK-GN) | 14 | GROUND - PILLAR C OR QUARTER PANEL RIGHT # 2ND POINT |

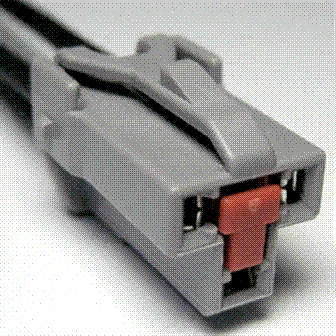

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1160 |
Service Part Number: 3U2Z-14S411-SJB Gauge: 12 Pin material: Tin Cavities: 3 Vehicle Uses Cigar Lighter Lamp - Ash Tray Power Point |
