Connector End View C466 - Subwoofer Amplifier

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

DESCRIPTION

SUBWOOFER AMPLIFIER

COLOR

HARNESS

14A005

BASE PART #

PART# N/A

SERVICE PIGTAIL

SEE BELOW

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VME01 (GN-VT)	18	CTRL MOD. - AMPLIFIER # SPEAKER LEFT REAR SUBWOOFER 1 +
2	RME01 (GY)	18	CTRL MOD. - AMPLIFIER # SPEAKER LEFT REAR SUBWOOFER 1 -
3	VME72 (WH)	18	CTRL MOD. - AMPLIFIER # SPEAKER LEFT REAR SUBWOOFER 2 +
4	RME72 (BU-GN)	18	CTRL MOD. - AMPLIFIER # SPEAKER LEFT REAR SUBWOOFER 2 -

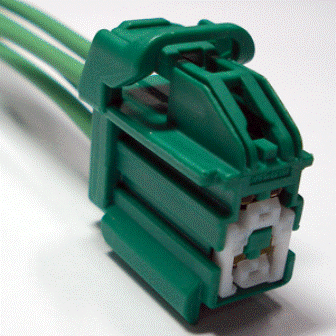

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1016

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-FFB

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses

Motor - Steering Column Adjust

Speaker - Subwoofer

Transceiver - Passive Anti-Theft (PATS)
