Connector End View C421 - Inline

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

DESCRIPTION

INLINE

COLOR

BASE PART #

SERVICE PIGTAIL

SEE BELOW

MALE

HARNESS 13A409

FEMALE

HARNESS 15B484

Pin	Circuit	Gauge	Qualifier
1	CPL10 (GN-WH)	18
2	CPL58 (GY-OG)	22
3	CPL60 (BN-YE)	22
4	VDN04 (VT-WH)	22
5	VMP24 (WH)	22
6	VDN14 (YE-VT)	22
6	VDN14 (YE-VT)	22
7	CLN70 (BN-VT)	22
8	CLN09 (YE-GN)	22
9	CPL45 (BN)	22
10	CLS44 (VT-BN)	22
11	GD348 (BK-VT)	14
11	GD348 (BK-YE)	14
12	CPL44 (YE-OG)	18
12	CPL44 (YE-OG)	18
12	CPL44 (YE-OG)	22
13	CPL59 (BN-BU)	18
13	CPL59 (BN-BU)	22
13	CPL59 (BN-BU)	22
14	CDC82 (GN-VT)	20
15	*	*
16	CRW05 (BU)	14
17	CRW02 (GY-BU)	20
18	VMP19 (WH-GN)	22
19	RMP19 (BN-VT)	22
20	DMP19 (BK)	22
20	DMP19 (GN-BU)	22
21	GD313 (BK-GN)	10

Pin	Circuit	Gauge	Qualifier
1	CPL10 (GN-WH)	18
2	CPL58 (GY-OG)	20
3	CPL60 (BN-YE)	20
4	VDN04 (VT-WH)	20
5	VMP24 (WH)	20
6	VDN14 (YE-VT)	20
7	CLN70 (BN-VT)	20
8	CLN09 (YE-GN)	20
9	CPL45 (BN)	20
10	CLS44 (VT-BN)	20
11	GD348 (BK-YE)	14
12	CPL44 (YE-OG)	20
13	CPL59 (BN-BU)	18
14	CDC82 (GN-VT)	20
15	*	*
16	CRW05 (BU)	14
17	CRW02 (GY-BU)	20
18	VMP19 (WH-GN)	20
19	RMP19 (BN-VT)	20
20	DMP19 (BK)	20

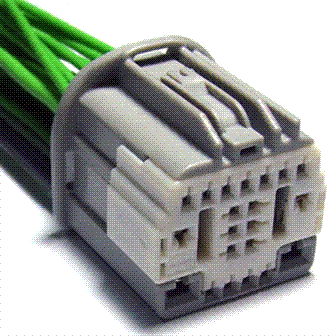

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1463

Courtesy of FORD MOTOR COMPANY

Service Part Number:

GU2Z-14S411-GA

Gauge:

14 16 20

Pin material:

Tin & Silver

Cavities:

Vehicle Uses:

Connector - Inline
