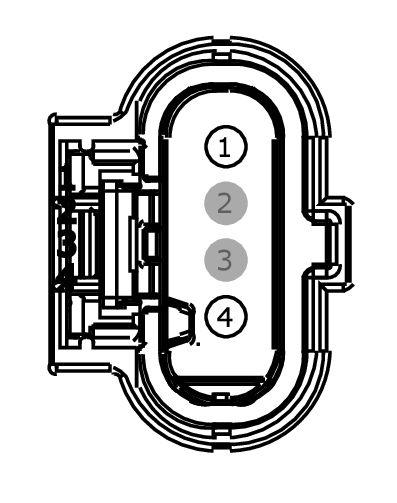

Connector End View C409 - Fuel Filler Door Lock Solenoid
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
DESCRIPTION
FUEL FILLER DOOR LOCK SOLENOID
COLOR
HARNESS
9B243
BASE PART #
PART# N/A
SERVICE PIGTAIL
SEE BELOW
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CPL51 (BU-GN) | 16 | CTRL MOD. - DOOR LOCK # DRIVER UNLOCK | |
| 2 | * | * | Not Used | |
| 3 | * | * | Not Used | |
| 4 | CPL11 (GY-BN) | 16 | CTRL MOD. - DOOR LOCK # ALL LOCK |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1537 |
Service Part Number: JU2Z-14S411-ACA Gauge: 18 Pin material: Silver Cavities: 4 Vehicle Uses Module - Differential Oil Temperature Module - Particulate Matter Bank Sensor Module - Reductant Quality Noise Generator Sensor - Fuel Rail Pressure and Temperature Sensor - Manifold Pressure/Intake Temperature Sensor - Turbo Intake Pressure/Temperature Valve - Active Exhaust Solenoid |
