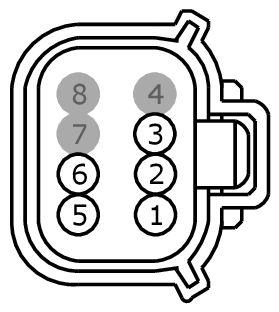

Connector End View C327 - Inline
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
DESCRIPTION
INLINE
COLOR
BASE PART #
SERVICE PIGTAIL
SEE BELOW
MALE
HARNESS 12663
FEMALE
HARNESS 14A005
| Pin | Circuit | Gauge | Qualifier |
| 1 | GD233 (BK) | 20 | |
| 2 | VLN04 (VT-GY) | 22 | |
| 3 | CBB87 (GN-BU) | 20 | |
| 4 | * | * | |
| 5 | RPSS4 (GY-BU) | 22 | |
| 6 | CPSR2 (BN-WH) | 22 | |
| 7 | * | * |
| Pin | Circuit | Gauge | Qualifier |
| 1 | GD233 (BK) | 20 | |
| 2 | VLN04 (VT-GY) | 22 | |
| 3 | CBB87 (GN-BU) | 20 | |
| 4 | * | * | |
| 5 | RPSS4 (GY-BU) | 22 | |
| 6 | CPSR2 (BN-WH) | 22 | |
| 7 | * | * |

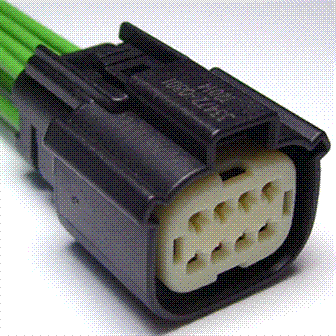

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1524 |
Service Part Number: CU2Z-14S411-ALB Gauge: 18 Pin material: Silver Cavities: 8 Vehicle Uses: Actuator - Door Lock - Decklid/Liftgate Actuator - Door Lock - LH - Sliding Door Actuator - Door Lock - RH - Sliding Door Connector - Inline Inflator - Safety Belt |
| Pigtail Kit Part Number WPT-1276 |
Service Part Number: CU2Z-14S411-ALA Gauge: 18 Pin material: Silver Cavities: 8 Vehicle Uses: Connector - Inline |
