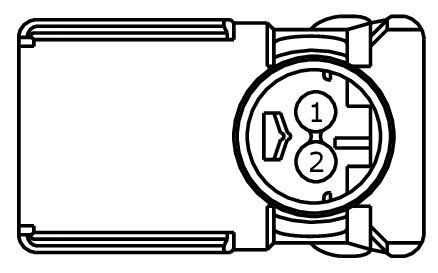

Connector End View C323 - Driver Safety Belt PRETENSIONER
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
DESCRIPTION
DRIVER SAFETY BELT PRETENSIONER
COLOR
HARNESS
14A005
BASE PART #
PART# N/A
SERVICE PIGTAIL
NOT AVAILABLE
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CR188 (VT-GN) | 20 | CTRL MOD. - SEAT BELT PRETENSIONER RETRACTOR FRONT DRIVER SIDE + | |
| 2 | RR188 (WH-VT) | 20 | CTRL MOD. - SEAT BELT PRETENSIONER RETRACTOR FRONT DRIVER SIDE - |
