Connector End View C301 - Ac Outlet
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
DESCRIPTION
AC OUTLET
COLOR
HARNESS
14B079/14K042
BASE PART #
PART# N/A
SERVICE PIGTAIL
SEE BELOW
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | HYA01 (OG-GN) | 20 | CTRL MOD. - DC/AC INVERTER # ALTERNATING CURRENT OUTPUT A (AC A) | |
| 2 | * | * | Not Used | |
| 3 | RYA03 (BU-BN) | 20 | CTRL MOD. - DC/AC INVERTER # LED INDICATOR - | |
| 4 | LYA03 (YE-VT) | 20 | CTRL MOD. - DC/AC INVERTER # LED INDICATOR + | |
| 5 | * | * | Not Used | |
| 6 | HYA02 (OG-WH) | 20 | CTRL MOD. - DC/AC INVERTER # ALTERNATING CURRENT OUTPUT B (AC B) |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1006 |

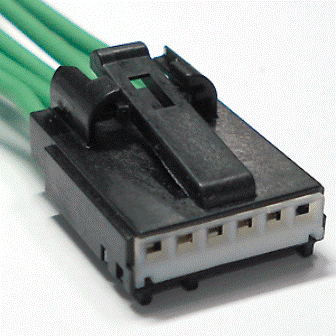

Service Part Number: 7U2Z-14S411-NB Gauge: 18 Pin material: Silver Cavities: 6 Vehicle Uses Lamp - Dimmer Switch Module - Front Interface Switch - Adjustable Pedal Switch - Dimmer Switch - Dimmer (Instrument Panel) Switch - Message Center Switch - Power Window - Passenger (Front) |
