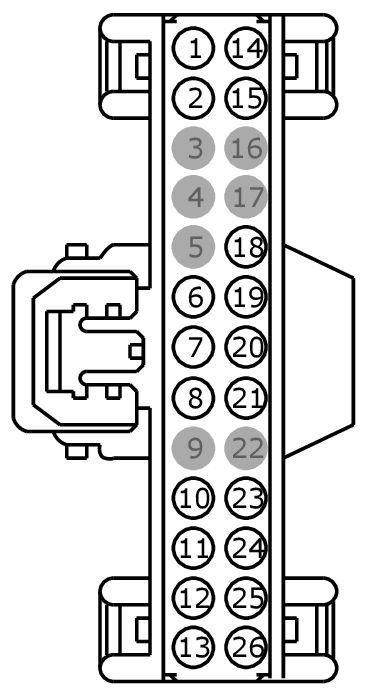

Connector End View C240B - Audio Unit

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

DESCRIPTION

AUDIO UNIT

COLOR

HARNESS

14401

BASE PART #

PART# N/A

SERVICE PIGTAIL

NOT AVAILABLE

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VME57 (YE-VT)	22	MICROPHONE - AMBIENT NOISE +
2	VME99 (VT-OG)	22	MICROPHONE - AMBIENT NOISE 2 +
3	*	*	Not Used
4	*	*	Not Used
5	*	*	Not Used
6	VME90 (GY-BU)	22	CTRL MOD. - SATELLITE DIGITAL RADIO DATA LINK (+) (SDL-H)
7	VMEA0 (BU-GN)	22	MICROPHONE - AMBIENT NOISE 3 +
8	VME80 (VT-GN)	22	CTRL MOD. - MULTIMEDIA GATEWAY MODULE # ALERT 1 (+)
9	*	*	Not Used
10	VMEA9 (BU-GY)	22	CTRL MOD. - REMOTE CD # AUDIO LEFT +
11	VMEB0 (GN-WH)	22	CTRL MOD. - REMOTE CD # AUDIO RIGHT +
12	VME52 (BU)	22	CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO LEFT +
13	VME53 (VT-GN)	22	CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO RIGHT +
14	RME57 (BU-BN)	22	MICROPHONE - AMBIENT NOISE -
15	RME99 (YE-GY)	22	MICROPHONE - AMBIENT NOISE 2 -
16	*	*	Not Used
17	*	*	Not Used
18	SME23 (VT-RD)	22	CTRL MOD. - AUDIO HEAD UNIT # AMPLIFIER ENABLE 1
18	SME23 (VT-RD)	26	CTRL MOD. - AUDIO HEAD UNIT # AMPLIFIER ENABLE 1
19	VME91 (WH-BN)	22	CTRL MOD. - SATELLITE DIGITAL RADIO DATA LINK (-) (SDL-L)
20	RMEA0 (WH-OG)	22	MICROPHONE - AMBIENT NOISE 3 -
21	RME80 (BU-GY)	22	CTRL MOD. - MULTIMEDIA GATEWAY MODULE # ALERT 1 (-)
22	*	*	Not Used
23	RMEA9 (VT-BN)	22	CTRL MOD. - REMOTE CD # AUDIO LEFT -
24	RMEB0 (WH-BN)	22	CTRL MOD. - REMOTE CD # AUDIO RIGHT -
25	RME52 (GY-OG)	22	CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO LEFT -
26	RME53 (BN-WH)	22	CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO RIGHT -
