Connector End View C236 - Air Distribution Door Actuator
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
DESCRIPTION
AIR DISTRIBUTION DOOR ACTUATOR
COLOR
HARNESS
19F561
BASE PART #
PART# N/A
SERVICE PIGTAIL
SEE BELOW
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CH202 (BU) | 26 | CTRL MOD. - CLIMATE # DOOR MOTOR PANEL/FLOOR COIL 1 / FLOOR (IF PLUS) | |
| 2 | RH111 (GY-BU) | 22 | CTRL MOD. - CLIMATE # DOOR POSITION SENSORS ALSO GENERIC VREF RETURN IN LOGICAL SCHEMATICS | |
| 3 | LH111 (BN-WH) | 22 | CTRL MOD. - CLIMATE # DOOR POSITION SENSORS ALSO GENERIC VREF IN LOGICAL SCHEMATICS | |
| 4 | VH436 (YE) | 26 | SENSOR - DOOR POSITION DEFROST | |
| 5 | * | * | Not Used | |
| 6 | CH203 (GN) | 26 | CTRL MOD. - CLIMATE # DOOR MOTOR PANEL/FLOOR COIL 2 / PANEL (IF PLUS) |
| Available Pigtail Kits | |

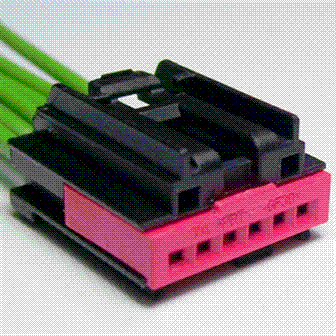

| Pigtail Kit Part Number WPT-1249 |
Service Part Number: 3U2Z-14S411-BYAC Gauge: 18 Pin material: Silver Cavities: 6 Vehicle Uses Lamp - Dome Lamp - Storage Compartment - Cargo Motor - Heater A/C Mode Door Motor - Heater/AC Blend Door Motor - Heater/AC Inlet Door Switch - Hazard Warning Switch - Heated Seat Switch - Heater A/C Blower (Rear) Switch - Speed Control |
