Connector End View C231 - Tweeter, Left Front
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
DESCRIPTION
TWEETER, LEFT FRONT
COLOR
HARNESS
14A005
BASE PART #
PART# N/A
SERVICE PIGTAIL
SEE BELOW
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | VME08 (GN-OG) | 20 | CTRL MOD. - AMPLIFIER # SPEAKER LEFT FRONT TWEETER + | |
| 2 | * | * | Not Used | |
| 3 | RME08 (GY-OG) | 20 | CTRL MOD. - AMPLIFIER # SPEAKER LEFT FRONT TWEETER - |

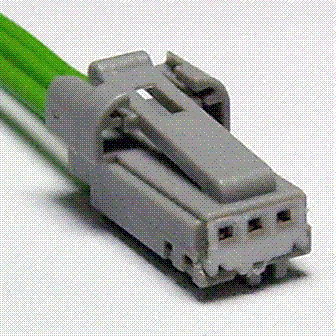

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1182 |
Service Part Number: BU2Z-14S411-AFA Gauge: 18 Pin material: Silver Cavities: 3 Vehicle Uses Microphone |
