Connector End View C216B - Driver Airbag
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
DESCRIPTION
DRIVER AIRBAG
COLOR
HARNESS
PIA
BASE PART #
74043B13
SERVICE PIGTAIL
SEE BELOW
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CR102 (BU) | 20 | CTRL MOD. - AIRBAG DRIVER 2 + | |
| 2 | RR102 (WH) | 20 | CTRL MOD. - AIRBAG DRIVER 2 - |
| Available Pigtail Kits | |

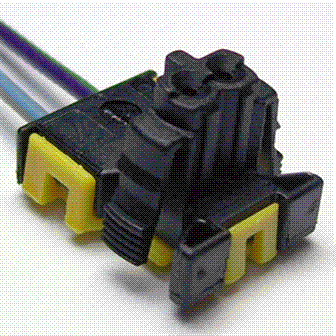

| Pigtail Kit Part Number WPT-1230 |
Service Part Number: BU2Z-14S411-BPA Gauge: 20 Pin material: FCI - Airbag Cavities: 2 Vehicle Uses Airbag - Side Curtain Squib - Airbag (Passenger) |
