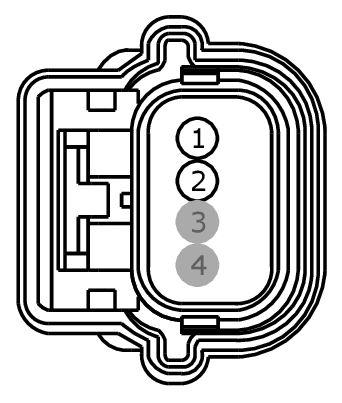

Connector End View C1797 - Keyless Vehicle Front Fascia Antenna
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
DESCRIPTION
KEYLESS VEHICLE FRONT FASCIA ANTENNA
COLOR
HARNESS
15K867
BASE PART #
PART# N/A
SERVICE PIGTAIL
SEE BELOW
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | VPK56 (YE-GN) | 20 | CTRL MOD. - KEYLESS VEHICLE # ANTENNA EXTERIOR (FRONT CENTER) + | |
| 2 | RPK56 (WH) | 20 | CTRL MOD. - KEYLESS VEHICLE # ANTENNA EXTERIOR (FRONT CENTER) - | |
| 3 | * | * | Not Used | |
| 4 | * | * | Not Used |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1307 |
Service Part Number: CU2Z-14S411-AGA Gauge: 18 Pin material: Silver Cavities: 4 Vehicle Uses Antenna - Keyless Entry Sensor - Brake Pedal Position Sensor - Clutch Master Cylinder |
