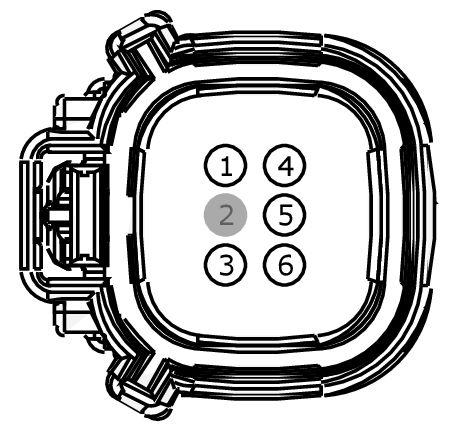

Connector End View C1792 - Transmission Fluid Pump
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
DESCRIPTION
TRANSMISSION FLUID PUMP
COLOR
HARNESS
7G276
BASE PART #
PART# N/A
SERVICE PIGTAIL
NOT AVAILABLE
 Courtesy of FORD MOTOR COMPANY
|
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
| 1 |
* (GN-VT) |
14 |
RUN/START |
| 2 |
* |
* |
Not Used |
| 3 |
* (YE-OG) |
20 |
TASV-B |
| 4 |
* (GY-OG) |
20 |
ATFPC CMD |
| 5 |
* (VT) |
20 |
ATFPM RPT |
| 6 |
* (BK-YE) |
14 |
GROUND |
