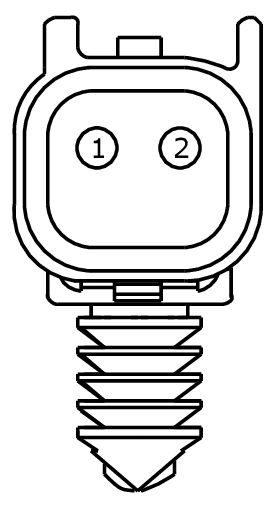

Connector End View C1788 - Heated Wiper Park
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
DESCRIPTION
HEATED WIPER PARK
COLOR
HARNESS
14290
BASE PART #
PART# N/A
SERVICE PIGTAIL
SEE BELOW
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | GD129 (BK-YE) | 16 | GROUND - HEADLAMP PANEL/GOR LEFT | |
| 2 | CBB80 (YE-GN) | 16 | FUSE - OR CIRCUIT BREAKER |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1186 |
Service Part Number: BU2Z-14S411-AKA Gauge: 16 Pin material: Tin (greased) Cavities: 2 Vehicle Uses Speaker - Tweeter - LH - Front Speaker - Tweeter - LH - Rear Speaker - Tweeter - RH - Front Speaker - Tweeter - RH - Rear Switch - Seatbelt |
