Connector End View C1766 - Active Grille Shutter, Upper
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
DESCRIPTION
ACTIVE GRILLE SHUTTER, UPPER
COLOR
HARNESS
14290
BASE PART #
PART# N/A
SERVICE PIGTAIL
SEE BELOW

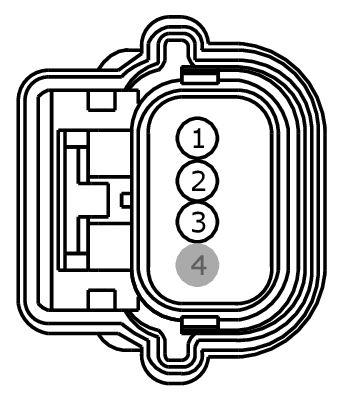

| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | GD131 (BK-GY) | 20 | GROUND - HEADLAMP PANEL/GOR RIGHT | |
| 2 | VDN06 (WH-GN) | 20 | CTRL MOD. - LIN BUS # ECM 1 | |
| 3 | CBK03 (GY) | 20 | FUSE - 3 OR CIRCUIT BREAKER (VPWR 3) | |
| 4 | * | * | Not Used |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1307 |

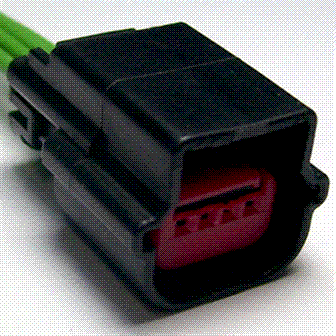

Service Part Number: CU2Z-14S411-AGA Gauge: 18 Pin material: Silver Cavities: 4 Vehicle Uses Antenna - Keyless Entry Sensor - Brake Pedal Position Sensor - Clutch Master Cylinder |
