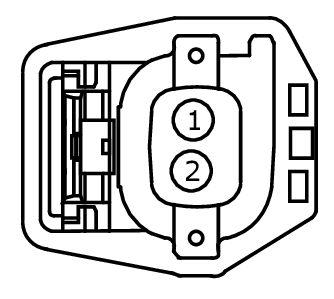

Connector End View C1669 - Hydraulic Solenoid Valve, Right Front

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

DESCRIPTION

HYDRAULIC SOLENOID VALVE, RIGHT FRONT

COLOR

HARNESS

3D096

BASE PART #

PART# N/A

SERVICE PIGTAIL

SEE BELOW

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CCD04 (GY-YE)	18	CTRL MOD. - CCD # SOLENOID DAMPER FRONT RIGHT +
2	RCD04 (BU-OG)	18	CTRL MOD. - CCD # SOLENOID DAMPER FRONT RIGHT -

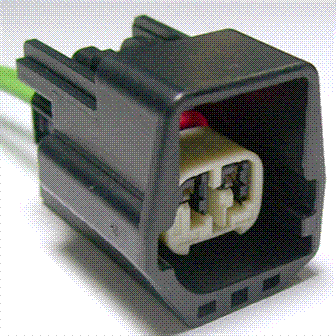

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1448

Courtesy of FORD MOTOR COMPANY

Service Part Number:

FU2Z-14S411-AUA

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses

Switch - Deck Lid / Lift Gate (ANTI-THEFT)
