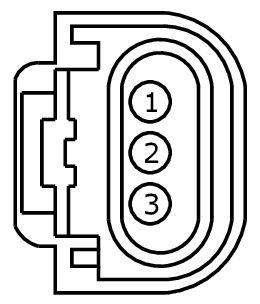

Connector End View C1645 - Generator Current Sensor

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

DESCRIPTION

GENERATOR CURRENT SENSOR

COLOR

HARNESS

14B060

BASE PART #

PART# N/A

SERVICE PIGTAIL

SEE BELOW

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	LE424 (YE-GN)	20	CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE COWL (C-VREF)
2	RE407 (YE-VT)	20	CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (C-SIGRTN) (SIGRTN-C)
3	VDC61 (VT-GN)	20	SENSOR - BATTERY MONITORING SYSTEM # ALTERNATOR

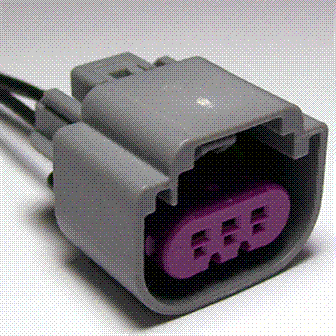

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1413

Courtesy of FORD MOTOR COMPANY

Service Part Number:

EU2Z-14S411-UA

Gauge:

Pin material:

Tin (greased)

Cavities:

Vehicle Uses

Sensor - Battery Current

Sensor - Brake Vacuum

Sensor - Fuel Tank Pressure Transducer
