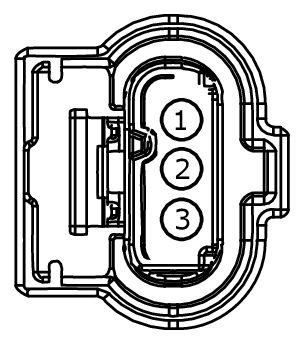

Connector End View C1607 - Front Active Park Assist LH

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

DESCRIPTION

FRONT ACTIVE PARK ASSIST LH

COLOR

HARNESS

15K867

BASE PART #

PART# N/A

SERVICE PIGTAIL

SEE BELOW

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	LMP06 (VT-GY)	20	CTRL MOD. - PARKING AID # SENSORS FRONT +
2	VMP20 (GY-OG)	20	SENSOR - PARKING AID # ACTIVE PARK ASSIST (AUTOPARK) FRONT LEFT SIDE
3	RMP06 (YE-OG)	20	CTRL MOD. - PARKING AID # SENSORS FRONT -

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1308

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-AVA

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses

Coil - Ignition

Sensor - Fuel Low Pressure
