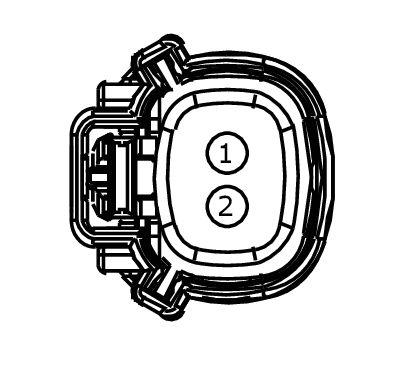

Connector End View C1589 - Fuel Injection Pump
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
DESCRIPTION
FUEL INJECTION PUMP
COLOR
HARNESS
12C508
BASE PART #
PART# N/A
SERVICE PIGTAIL
NOT AVAILABLE
 Courtesy of FORD MOTOR COMPANY
|
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
| 1 |
CE226 (YE-VT) |
14 |
CTRL MOD. - POWERTRAIN # FUEL PUMP ON/OFF (FP) + |
| 2 |
RE226 (GN-VT) |
14 |
CTRL MOD. - POWERTRAIN # FUEL PUMP ON/OFF (FP) - |
