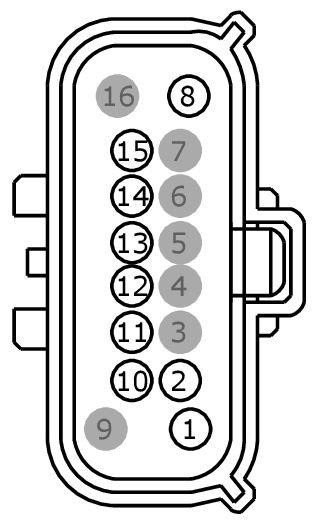

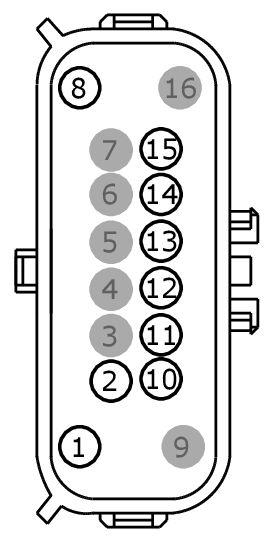

Connector End View C146 - Inline
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
DESCRIPTION
INLINE
COLOR
BASE PART #
SERVICE PIGTAIL
SEE BELOW
MALE
HARNESS 14290
FEMALE
HARNESS 15A211
| Pin | Circuit | Gauge | Qualifier |
| 1 | VES12 (YE-GN) | 22 | |
| 2 | VES11 (BU-BN) | 22 | |
| 3 | * | * | |
| 4 | * | * | |
| 5 | * | * | |
| 6 | * | * | |
| 7 | * | * | |
| 8 | GD131 (BK-GY) | 22 | |
| 9 | * | * | |
| 10 | CDC82 (GN-VT) | 22 | |
| 11 | VE175 (BN-WH) | 22 | |
| 12 | CBK03 (GY) | 20 | |
| 13 | VDN06 (WH-GN) | 22 | |
| 14 | CBK03 (GY) | 20 | |
| 15 | GD131 (BK-GY) | 20 |
| Pin | Circuit | Gauge | Qualifier |
| 1 | VES12 (YE-GN) | 22 | |
| 2 | VES11 (BU-BN) | 22 | |
| 3 | * | * | |
| 4 | * | * | |
| 5 | * | * | |
| 6 | * | * | |
| 7 | * | * | |
| 8 | GD131 (BK-GY) | 22 | |
| 9 | * | * | |
| 10 | CDC82 (GN-VT) | 22 | |
| 11 | VE175 (BN-WH) | 20 | |
| 12 | CBK03 (GY) | 20 | |
| 13 | VDN06 (WH-GN) | 20 | |
| 14 | CBK03 (GY) | 20 | |
| 15 | GD131 (BK-GY) | 20 |
| Available Pigtail Kits | |

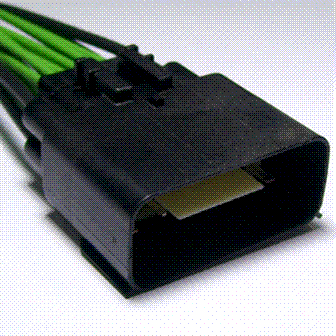

| Pigtail Kit Part Number WPT-1393 |
Service Part Number: 7U2Z-14S411-KB Gauge: 14 18 Pin material: Tin & Silver Cavities: 16 Vehicle Uses: Connector - Inline For Mating Connector Refer To WPT-1142 |

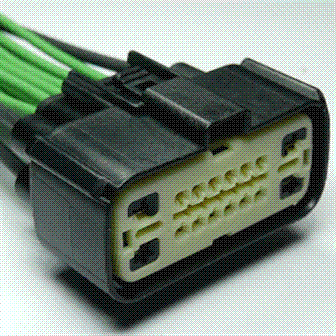

| Pigtail Kit Part Number WPT-1541 |
Service Part Number: JU2Z-14S411-KA Gauge: 14 16 Pin material: Tin & Silver Cavities: 16 Vehicle Uses: Connector - Inline In-Line - Auxiliary Engine Connector Module - Glow Plug |
