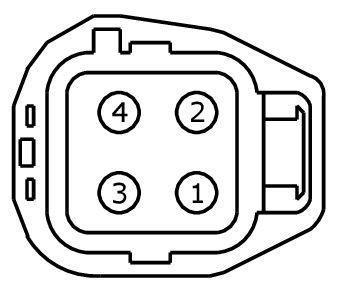

Connector End View C144 - Inline
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
DESCRIPTION
INLINE
COLOR
DK GY
BASE PART #
SERVICE PIGTAIL
SEE BELOW
MALE
HARNESS 14290
FEMALE
HARNESS 8C290
| Pin | Circuit | Gauge | Qualifier |
| 1 | CE632 (GY-BU) | 12 | |
| 2 | GD131 (BK-GY) | 14 | |
| 3 | CE632 (GY-BU) | 12 |
| Pin | Circuit | Gauge | Qualifier |
| 1 | CE632 (GY-BU) | 14 | |
| 2 | GD131 (BK-GY) | 14 | |
| 3 | CE632 (GY-BU) | 14 |
| Available Pigtail Kits | |

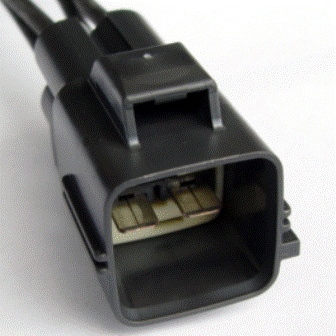

| Pigtail Kit Part Number WPT-750 |
Service Part Number: 3U2Z-14S411-EJAA Gauge: 10 Pin material: Tin Cavities: 4 Vehicle Uses: Mating Connector WPT-1343 Motor - Engine Cooling Fan |

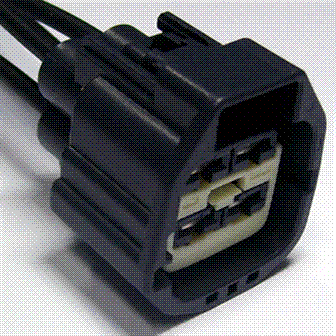

| Pigtail Kit Part Number WPT-1343 |
Service Part Number: DU2Z-14S411-ABA Gauge: 12 Pin material: Tin Cavities: 4 Vehicle Uses: Mating Connector WPT-750 Motor - Engine Cooling Fan |
