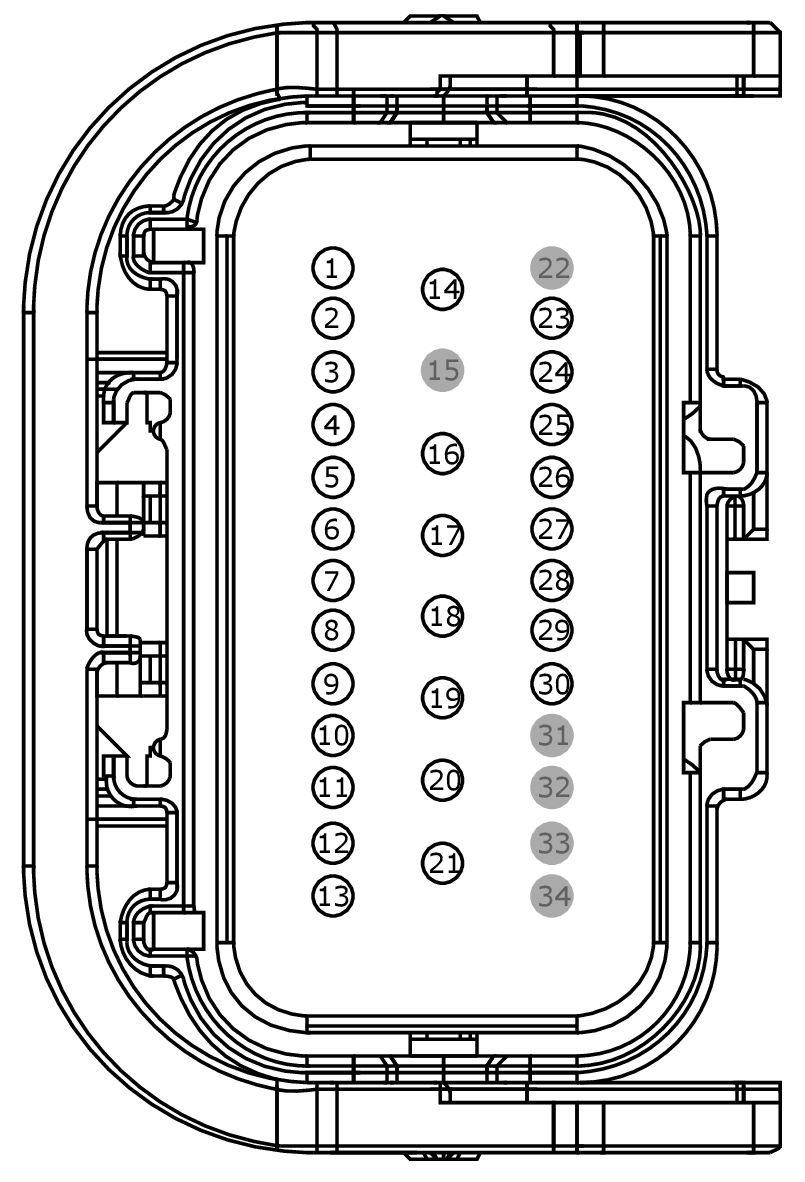

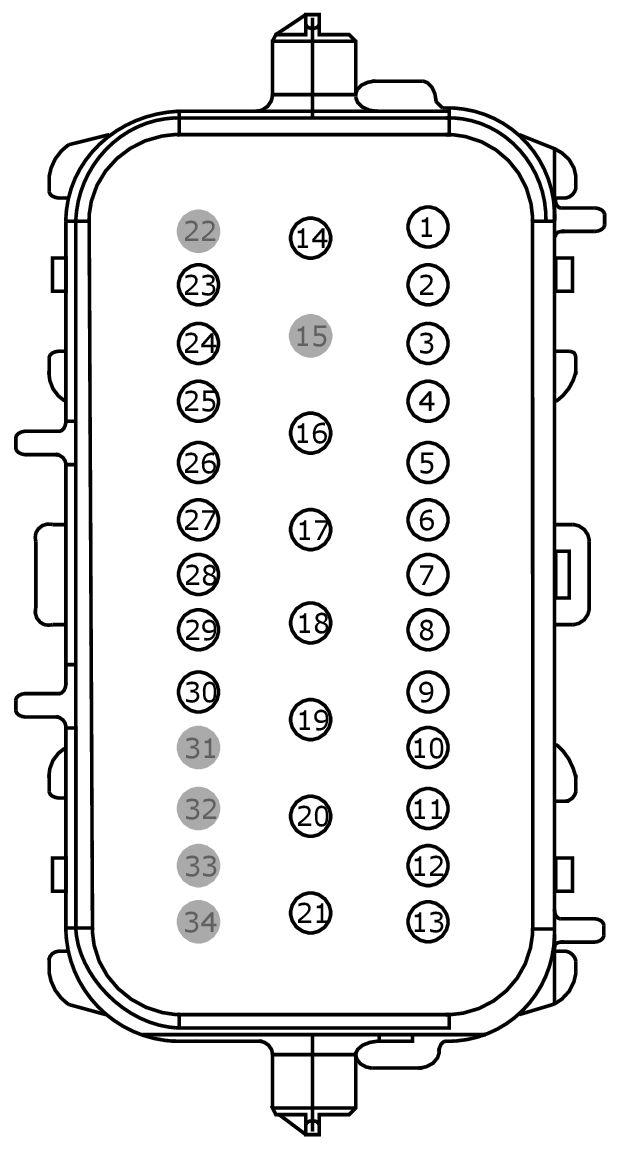

Connector End View C139 - Inline
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
DESCRIPTION
INLINE
COLOR
BASE PART #
SERVICE PIGTAIL
NOT AVAILABLE
MALE
HARNESS 14290
FEMALE
HARNESS 14405
| Pin | Circuit | Gauge | Qualifier |
| 1 | VE225 (YE-OG) | 22 | |
| 2 | VE518 (BN-WH) | 22 | |
| 3 | VCA06 (WH-OG) | 20 | |
| 4 | RCA20 (BN) | 20 | |
| 5 | VCA04 (BU-OG) | 20 | |
| 6 | RCA18 (BN-GN) | 20 | |
| 7 | CE114 (GN-BU) | 22 | |
| 8 | CBK02 (GN) | 18 | |
| 9 | LCD25 (GN-WH) | 22 | |
| 10 | RCD25 (GY) | 22 | |
| 11 | VCD12 (VT-WH) | 22 | |
| 12 | CBK02 (GN) | 18 | |
| 13 | CAT03 (GY-BN) | 20 | |
| 14 | CBK01 (BU) | 10 | |
| 15 | * | * | |
| 16 | CAT11 (BN) | 14 | |
| 17 | CBB01 (BU) | 12 | |
| 18 | CCB16 (WH-VT) | 12 | |
| 19 | CCB17 (BU-GN) | 12 | |
| 20 | CCB18 (YE-GY) | 12 | |
| 21 | CCB19 (GN-BN) | 12 | |
| 22 | * | * | |
| 23 | CE420 (GY-VT) | 22 | |
| 24 | VE922 (VT-GN) | 22 | |
| 25 | RE230 (WH-VT) | 22 | |
| 26 | LE230 (BN-BU) | 22 | |
| 27 | VDB04 (WH-BU) | 20 | |
| 28 | VDB05 (WH) | 20 | |
| 29 | VDB04 (WH-BU) | 22 | |
| 30 | VDB05 (WH) | 22 | |
| 31 | * | * | |
| 32 | * | * | |
| 33 | * | * |
| Pin | Circuit | Gauge | Qualifier |
| 1 | VE225 (YE-OG) | 22 | |
| 2 | VE518 (BN-WH) | 22 | |
| 3 | VCA06 (WH-OG) | 20 | |
| 4 | RCA20 (BN) | 20 | |
| 5 | VCA04 (BU-OG) | 20 | |
| 6 | RCA18 (BN-GN) | 20 | |
| 7 | CE114 (GN-BU) | 20 | |
| 8 | CBK02 (GN) | 18 | |
| 9 | LCD25 (GN-WH) | 22 | |
| 10 | RCD25 (GY) | 22 | |
| 11 | VCD12 (VT-WH) | 22 | |
| 12 | CBK02 (GN) | 16 | |
| 13 | CAT03 (GY-BN) | 18 | |
| 14 | CBK01 (BU) | 10 | |
| 14 | CBK01 (BU) | 12 | |
| 15 | * | * | |
| 16 | CAT11 (BN) | 16 | |
| 17 | CBB01 (BU) | 12 | |
| 18 | CCB16 (WH-VT) | 12 | |
| 19 | CCB17 (BU-GN) | 12 | |
| 20 | CCB18 (YE-GY) | 12 | |
| 21 | CCB19 (GN-BN) | 12 | |
| 22 | * | * | |
| 23 | CE420 (GY-VT) | 20 | |
| 24 | VE922 (VT-GN) | 22 | |
| 25 | RE230 (WH-VT) | 22 | |
| 26 | LE230 (BN-BU) | 22 | |
| 27 | VDB04 (WH-BU) | 20 | |
| 28 | VDB05 (WH) | 20 | |
| 29 | VDB04 (WH-BU) | 20 | |
| 30 | VDB05 (WH) | 20 | |
| 31 | * | * | |
| 32 | * | * | |
| 33 | * | * |
