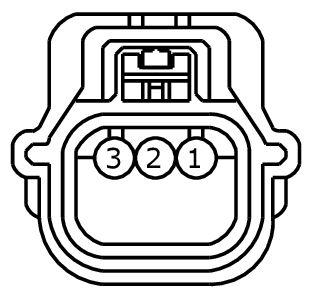

Connector End View C1260 - A/C Pressure Transducer

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

DESCRIPTION

A/C PRESSURE TRANSDUCER

COLOR

HARNESS

14290

BASE PART #

PART# N/A

SERVICE PIGTAIL

SEE BELOW

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	RE407 (YE-VT)	22	CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (C-SIGRTN) (SIGRTN-C)
2	VH433 (VT-OG)	22	TRANSDUCER - A/C PRESSURE (ACPT) +
3	LE424 (YE-GN)	22	CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE COWL (C-VREF)

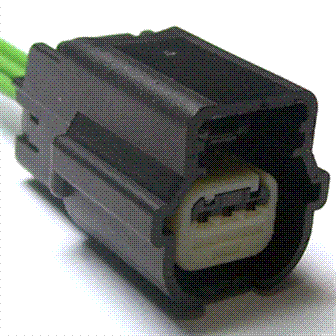

Available Pigtail Kits
Pigtail Kit Part Number WPT-1400 Courtesy of FORD MOTOR COMPANY	Service Part Number: 9U2Z-14S411-CC Gauge: 20 Pin material: Silver Cavities: 3 Vehicle Uses Monitor - Crankcase Ventilation Sensor - Air Suspension Sensor - Front Park Aid (FPA) Sensor - Occupant Classification Sensor - Reverse Park Aide (RPA) Switch - A/C Compressor Clutch Cycling Switch - A/C High Pressure
Pigtail Kit Part Number WPT-1578	Service Part Number: 9U2Z-14S411-CD Gauge: 20 Pin material: Silver Cavities: 3 Vehicle Uses Lamp - License Monitor - Crankcase Ventilation Sensor - Air Quality Sensor - Air Suspension - LH - Front Sensor - Air Suspension - LH - Rear Sensor - Air Suspension - RH - Front Sensor - Air Suspension - RH - Rear Sensor - Front Park Aid (FPA) Sensor - Fuel Tank Pressure Transducer Sensor - Headlamp Leveling Sensor - Occupant Classification Sensor - Reverse Park Aide (RPA) Switch - A/C Compressor Clutch Cycling Switch - A/C High Pressure
Pigtail Kit Part Number WPT-1315 Courtesy of FORD MOTOR COMPANY	Service Part Number: 9U2Z-14S411-CB Gauge: 20 Pin material: Silver Cavities: 3 Vehicle Uses Monitor - Crankcase Ventilation Sensor - Air Suspension Sensor - Front Park Aid (FPA) Sensor - Occupant Classification Sensor - Reverse Park Aide (RPA) Switch - A/C Compressor Clutch Cycling Switch - A/C High Pressure
