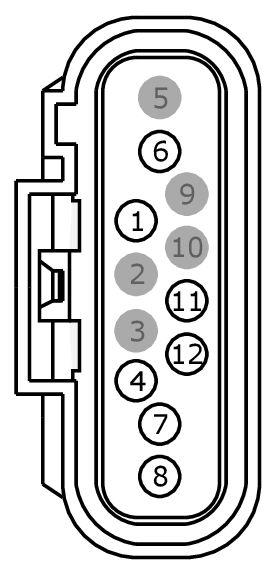

Connector End View C125 - Windshield Wiper Motor
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
DESCRIPTION
WINDSHIELD WIPER MOTOR
COLOR
HARNESS
14290
BASE PART #
PART# N/A
SERVICE PIGTAIL
SEE BELOW
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CRW15 (BN-WH) | 22 | CTRL MOD. - FRONT WIPER HIGH | |
| 2 | * | * | Not Used | |
| 3 | * | * | Not Used | |
| 4 | VX107 (YE-GY) | 22 | CTRL MOD. - LIN BUS # STEERING WHEEL CONTROL MODULE 1 | |
| 5 | * | * | Not Used | |
| 6 | GD129 (BK-YE) | 14 | GROUND - HEADLAMP PANEL/GOR LEFT | |
| 7 | CRW14 (BU-WH) | 16 | CTRL MOD. - FRONT WASHER | |
| 8 | CRW03 (VT-WH) | 14 | RELAY - FRONT WIPER | |
| 9 | * | * | Not Used | |
| 10 | * | * | Not Used | |
| 11 | CRW02 (GY-BU) | 20 | CTRL MOD. - REAR WIPER | |
| 12 | CRW34 (BU-BN) | 20 | CTRL MOD. - REAR WASHER |

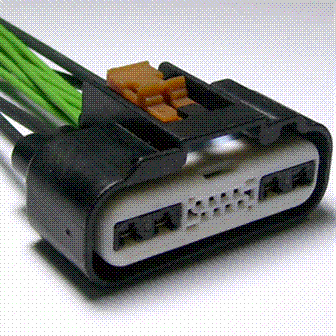

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1316 |
Service Part Number: BU2Z-14S411-AB Gauge: 14 20 Pin material: Tin & Silver Cavities: 12 Vehicle Uses Motor - Windshield Wiper |
