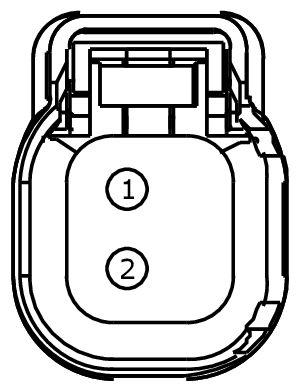

Connector End View C1183 - Fuel Injector 3B
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
DESCRIPTION
FUEL INJECTOR 3B
COLOR
BK
HARNESS
14B485
BASE PART #
PART# N/A
SERVICE PIGTAIL
SEE BELOW
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CE264 (YE-VT) | 18 | CTRL MOD. - POWERTRAIN # FUEL INJECTOR CONTROL FEED 3 | |
| 2 | CBK01 (BU) | 18 | FUEL PUMP RELAY OUTPUT (VPWR F) |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1051 |
Service Part Number: 5U2Z-14S411-ZB Gauge: 16 Pin material: Silver Cavities: 2 Vehicle Uses Fuel Injector Horn Switch - Backup Lamp Switch - Hood Ajar |
