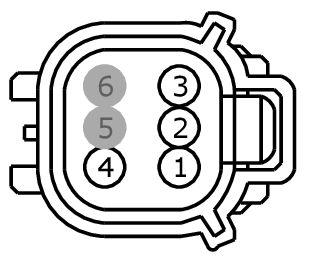

Connector End View C1147 - Inline
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
DESCRIPTION
INLINE
COLOR
BASE PART #
SERVICE PIGTAIL
SEE BELOW
MALE
HARNESS 14B485
FEMALE
HARNESS 12C508
| Pin | Circuit | Gauge | Qualifier |
| 1 | CE264 (YE-VT) | 18 | |
| 2 | CE263 (BU-GN) | 18 | |
| 3 | CBK01 (BU) | 18 | |
| 4 | CE262 (GN) | 18 | |
| 5 | * | * |
| Pin | Circuit | Gauge | Qualifier |
| 1 | CE264 (YE-VT) | 18 | |
| 2 | CE263 (BU-GN) | 18 | |
| 3 | CBK01 (BU) | 18 | |
| 4 | CE262 (GN) | 18 | |
| 5 | * | * |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1426 |
Service Part Number: FU2Z-14S411-TA Gauge: 16 Pin material: Silver Cavities: 6 Vehicle Uses: Camera - Reverse Park Aid Lamp - Park/Turn/Stop Sensor - Coolant Temperature Sensor - O2 (HEGO/ EGO) |
| Pigtail Kit Part Number WPT-971 |
Service Part Number: 3U2Z-14S411-FEAB Gauge: 14 Pin material: Silver Cavities: 6 Vehicle Uses: Connector - Inline Lamp - Headlamp - High/Low Beam Lamp - Park/Turn/Stop Motor - Engine Cooling Fan Motor - Running Board |
