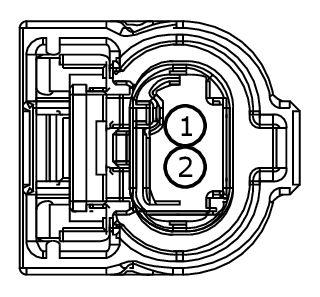

Connector End View C1146 - Fuel Injector 6A
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
DESCRIPTION
FUEL INJECTOR 6A
COLOR
HARNESS
14B485
BASE PART #
PART# N/A
SERVICE PIGTAIL
SEE BELOW
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | RE210 (BN-VT) | 16 | CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 6 (INJ) - | |
| 2 | CE210 (GN-WH) | 16 | CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 6 (INJ) + |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1469 |
Service Part Number: GU2Z-14S411-KA Gauge: 18 Pin material: Silver Cavities: 2 Vehicle Uses Sensor - Side Impact Sensor - Transfer Case Temperature Sensor - Transmission Fluid Temperature Solenoid - Variable Oil Pump Control |
