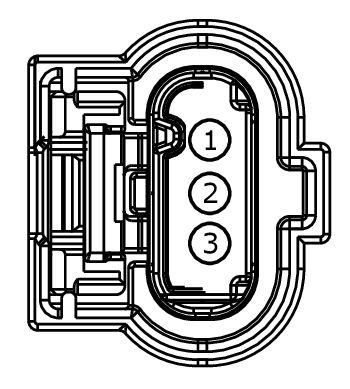

Connector End View C1120 - Crankshaft Position (CKP) Sensor
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
DESCRIPTION
CRANKSHAFT POSITION (CKP) SENSOR
COLOR
HARNESS
12C508
BASE PART #
PART# N/A
SERVICE PIGTAIL
SEE BELOW
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | VE711 (YE-VT) | 18 | SENSOR - CRANKSHAFT POSITION (CKPP) + | |
| 2 | RE135 (GN-BN) | 18 | CTRL MOD. - POWERTRAIN # CRANKSHAFT POSITION SENSOR (CKPN) - | |
| 3 | LE423 (GN-VT) | 18 | CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE (VREF) (E-VREF) (VREF1) |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1492 |
Service Part Number: HU2Z-14S411-BA Gauge: 18 Pin material: Silver Cavities: 3 Vehicle Uses Coil - Ignition Monitor - Crankcase Ventilation Motor - Intercooler Pump Sensor - Cam Shaft Position Sensor - Crank Shaft Position Sensor - Delta Pressure Feedback EGR Sensor - Exhaust Gas Pressure Sensor - Intake Manifold Runner Control Sensor - Manifold Absolute Pressure (MAP) Sensor - Oil Pressure |
