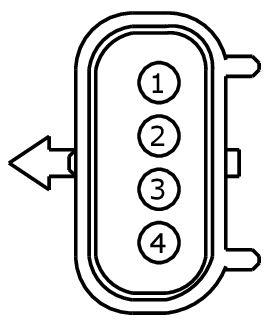

Connector End View C108 - Knock Sensor (KS)

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

DESCRIPTION

KNOCK SENSOR (KS)

COLOR

HARNESS

12C508

BASE PART #

PART# N/A

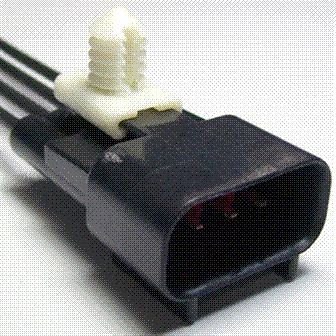

SERVICE PIGTAIL

SEE BELOW

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VE801 (VT-OG)	18	SENSOR - KNOCK 1ST BANK 1ST OR UNIQUE (KS1P) [KSL1+]
2	RE323 (WH-BN)	18	CTRL MOD. - POWERTRAIN # KNOCK SENSOR 1ST BANK 1ST OR UNIQUE (KS1N) [KSL1-] -
3	VE802 (BN-BU)	18	SENSOR - KNOCK 2ND BANK 1ST (KS2P) [KSL2+]
4	RE324 (BN-GN)	18	CTRL MOD. - POWERTRAIN # KNOCK SENSOR 2ND BANK 1ST (KS2N) [KSL2-]

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1220

Courtesy of FORD MOTOR COMPANY

Service Part Number:

BU2Z-14S411-AXA

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses

Sensor - Knock
