Connector End View C1047 - Inline
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
DESCRIPTION
INLINE
COLOR
BASE PART #
SERVICE PIGTAIL
SEE BELOW
MALE
HARNESS 14B485
FEMALE
HARNESS 12C508

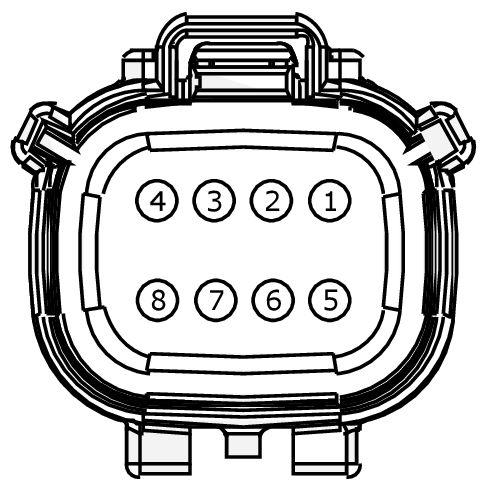

| Pin | Circuit | Gauge | Qualifier |
| 1 | CE267 (BU-GY) | 18 | |
| 2 | CE266 (VT-GN) | 18 | |
| 3 | CE265 (WH) | 18 | |
| 4 | CBK01 (BU) | 18 | |
| 5 | RE401 (GN-BU) | 18 | |
| 6 | LE458 (BU-WH) | 18 | |
| 7 | VE761 (BN-BU) | 18 |
| Pin | Circuit | Gauge | Qualifier |
| 1 | CE267 (BU-GY) | 18 | |
| 2 | CE266 (VT-GN) | 18 | |
| 3 | CE265 (WH) | 18 | |
| 4 | CBK01 (BU) | 18 | |
| 5 | RE401 (GN-BU) | 18 | |
| 6 | LE458 (BU-WH) | 18 | |
| 7 | VE761 (YE) | 18 |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1407 |

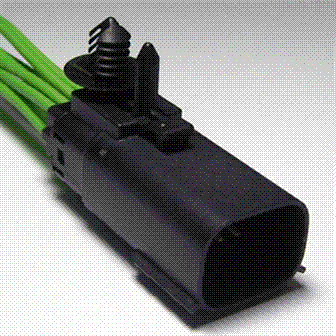

Service Part Number: FU2Z-14S411-DA Gauge: 16 Pin material: Silver Cavities: 8 Vehicle Uses: Mirror - Sideview |
| Pigtail Kit Part Number WPT-1415 |
Service Part Number: FU2Z-14S411-DB Gauge: 16 Pin material: Silver Cavities: 8 Vehicle Uses: Mirror - Sideview |
